- Output Power(w):Â 3w-5w
- Battery Capacity(mAh):Â 1400
- Waterproof / Water-Resistant:Â No
- Material:Â Plastic
- Storage Channel:Â 200
- Frequency Range:Â VHF 136-174MHz & UHF 400-480MHz dual band

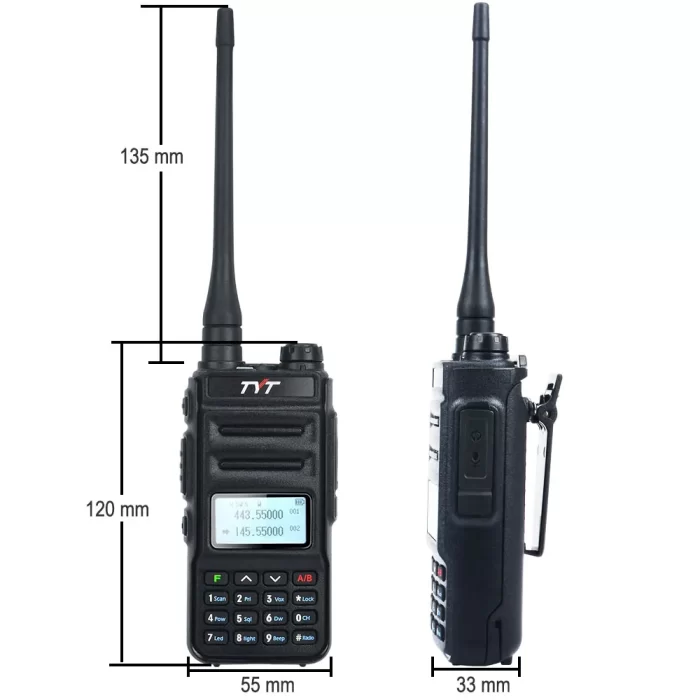

- Dimensions:Â 120mm*55*30mm
- Model Number:Â TH-UV88
- Walkie Talkie Type:Â Portable
- Is_Display:Â Yes
- Maximum Range:Â 1.5km-3km
- Brand Name:Â TYT
- Origin:Â Mainland China
- Color:Â Black

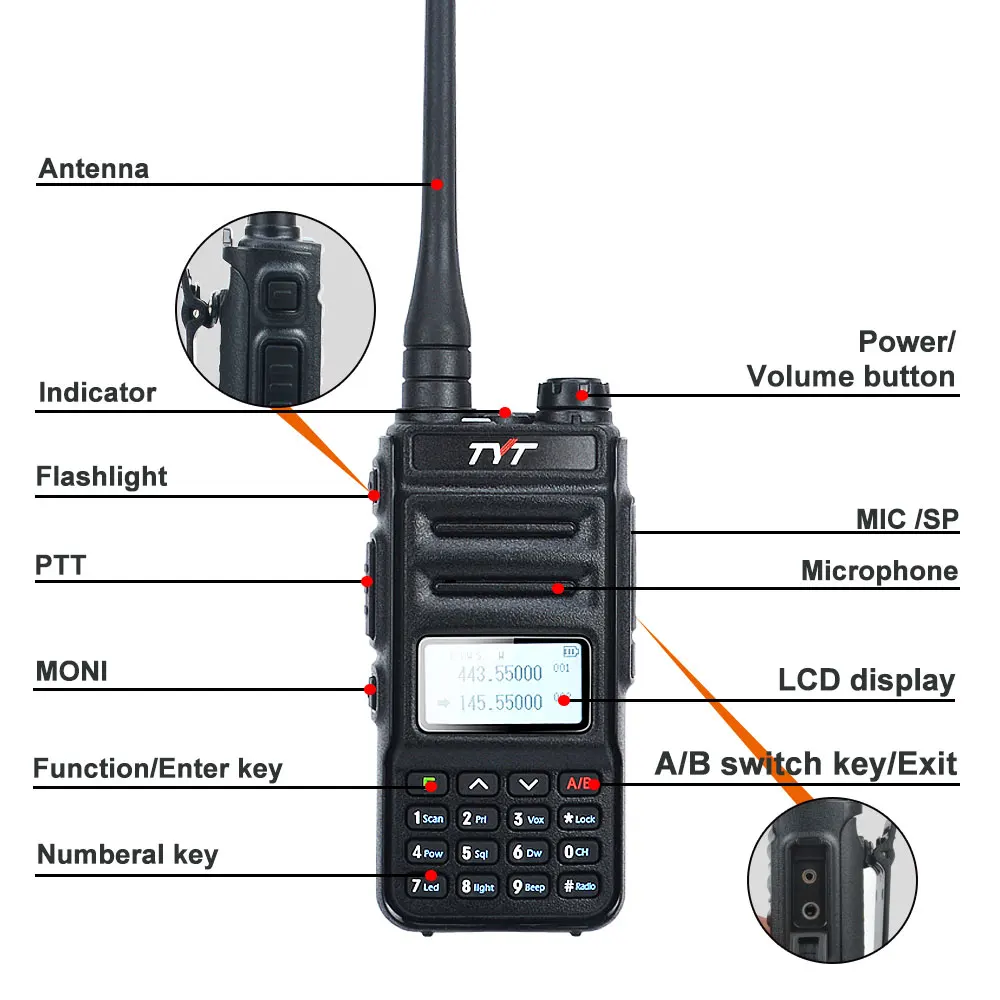

Features:
- VHF 136-174MHz & UHF 400-480MHz
- DOT-MATRIX LCD display
- A/B band storage and scanning
- FM radio and 24 station memory
- Wide/Middle/Narrow band selectable
- VOX 0-7 grade setting
- Shortcut menu operation mode
- Emergency alert
- ANI Function
- DTMF encoding and decoding
- Multiple types of keys lock setting
- Multi-display mode
- Remote stun/Kill/active
- Dual Band, Dual wait, Dual standby
- 200 Channels
- Battery Saving
- 8 groups of Scrambler
- 1750Hz tone
- 2 Tone/ 5 Tone
- CTCSS/DCS
Specifications:
General | |
Frequency Range | 136-174MHz & 400-480MHz |
Frequency Stability | ±2.5PPm |
Operating Voltage | DC7.4V (Rechargeable Li-ion battery) |
Channel Number | 200 |

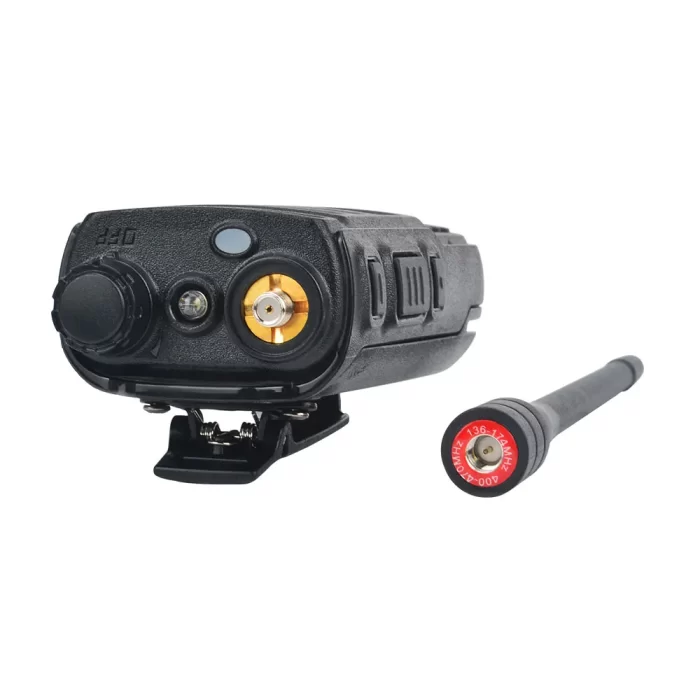

Antenna | SMA-Male High gain antenna |
Antenna Impedance | 50 ohm |
Mode of Operation | Simplex or semi-duplex |
Battery Capacity | 1400mAh |
Receiver | |
RF Sensitivity | -122dBm(12dB SINAD) |
Audio power | >0.5W |
Audio distortion | <10% |
Blocking | ≥85dB |
Intermediation | ≥55dB |
Selectivity | ≥60dB |
Spurious rejection | ≥65dB |
Transmitter | |
Output Power | ≤5W |
Modulation Mode | 16KØ F3E/11KØ F3E |
Maximum deviation | <5KHz/<2.5KHz |
Adjacent Ch.Power | ≤-65dB |
Spurious radiation | <7µW |
Pre-emphasis characteristics | 6dB |
Current | ≤2.8A(10W) ≤1.4A(5W) |
CTCSS/DCS deviation | 0.55KHz± 0.15KHz, 0.4KHz± 0.1KHz |
Intermediation sensitivity | 8-12mV |
Intermediation distortion | <5% |

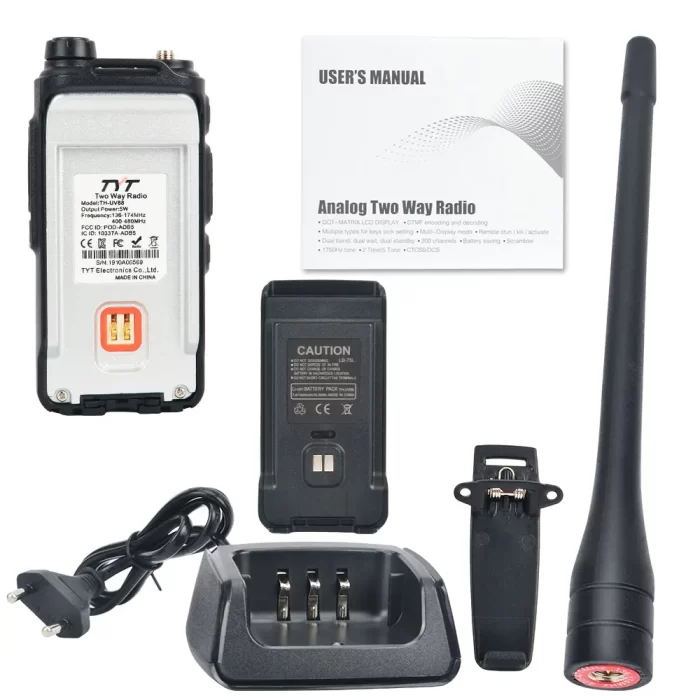

Package Contains:
1× TYT TH-UV88 Dual band radioÂ
1× 7.4V 1400mah Li-ion Battery Pack
1× SMA-Male Standard Antenna
1× Battery belt clip

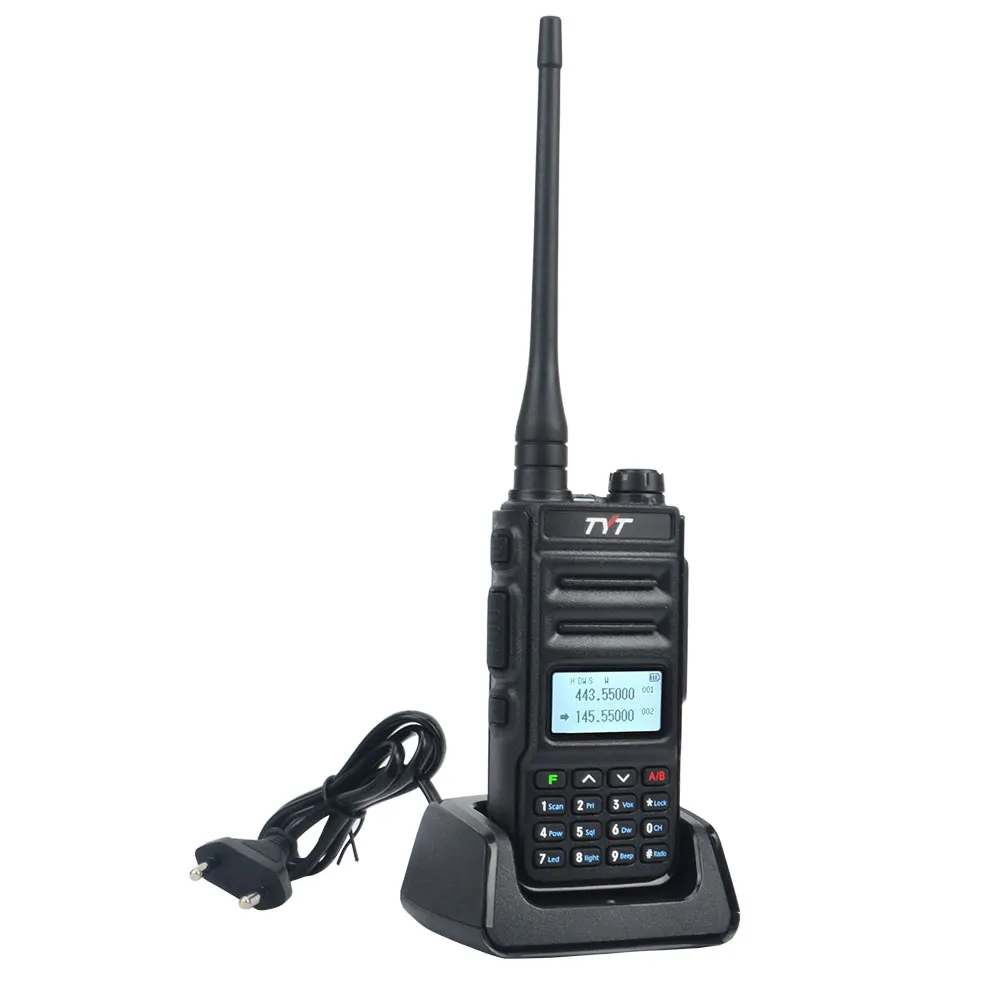

1× Charger
1× ENG Manual

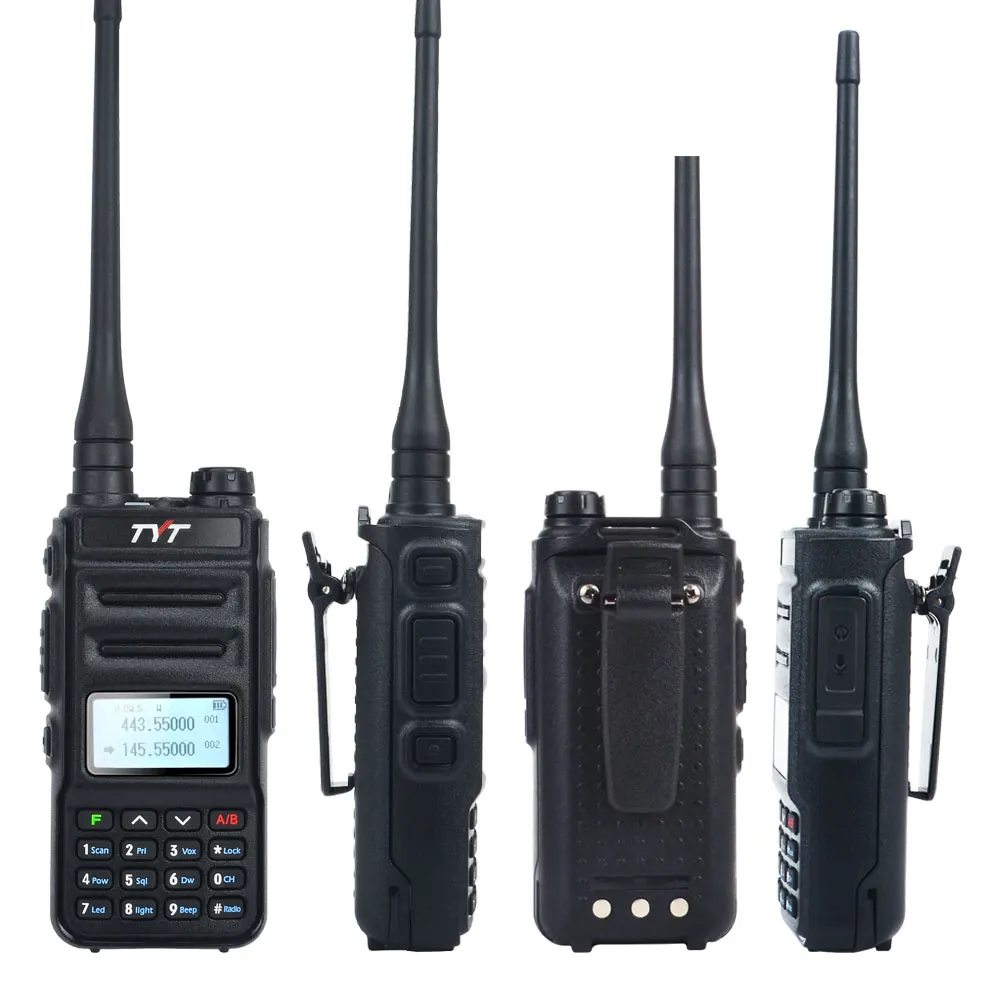

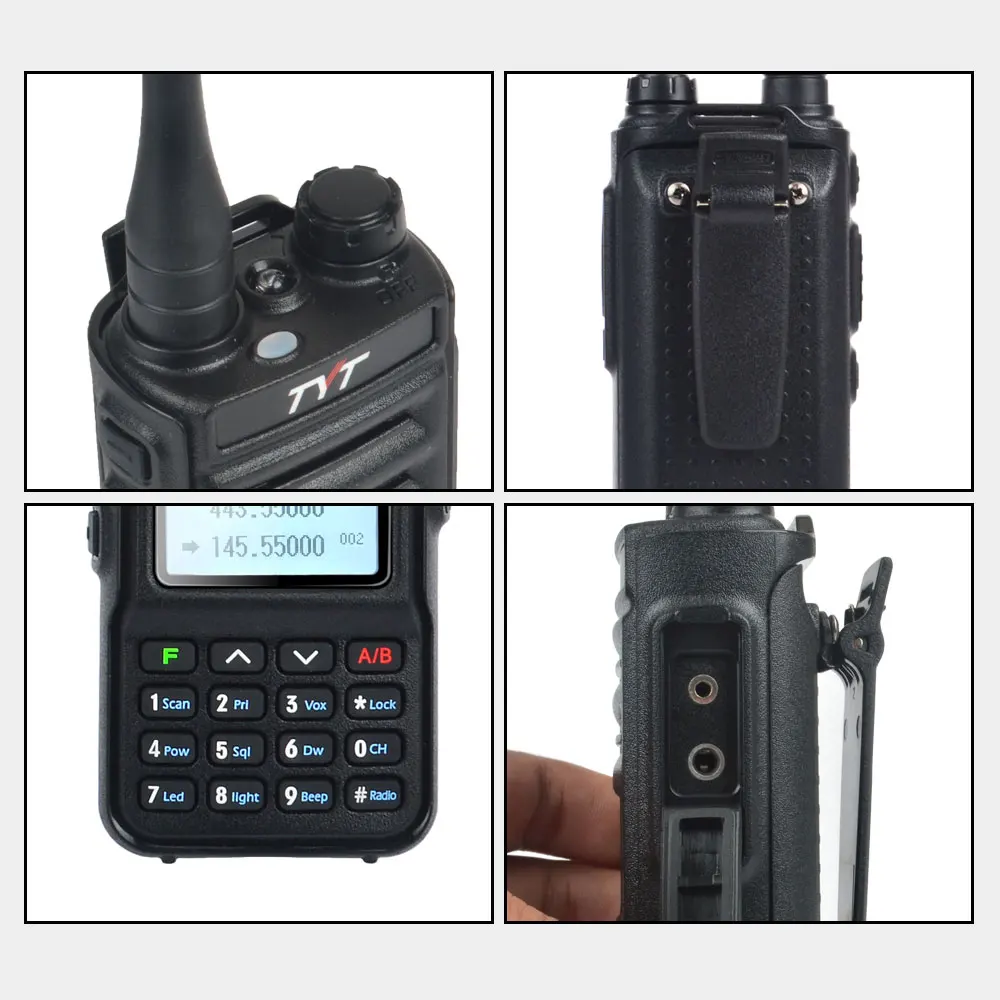

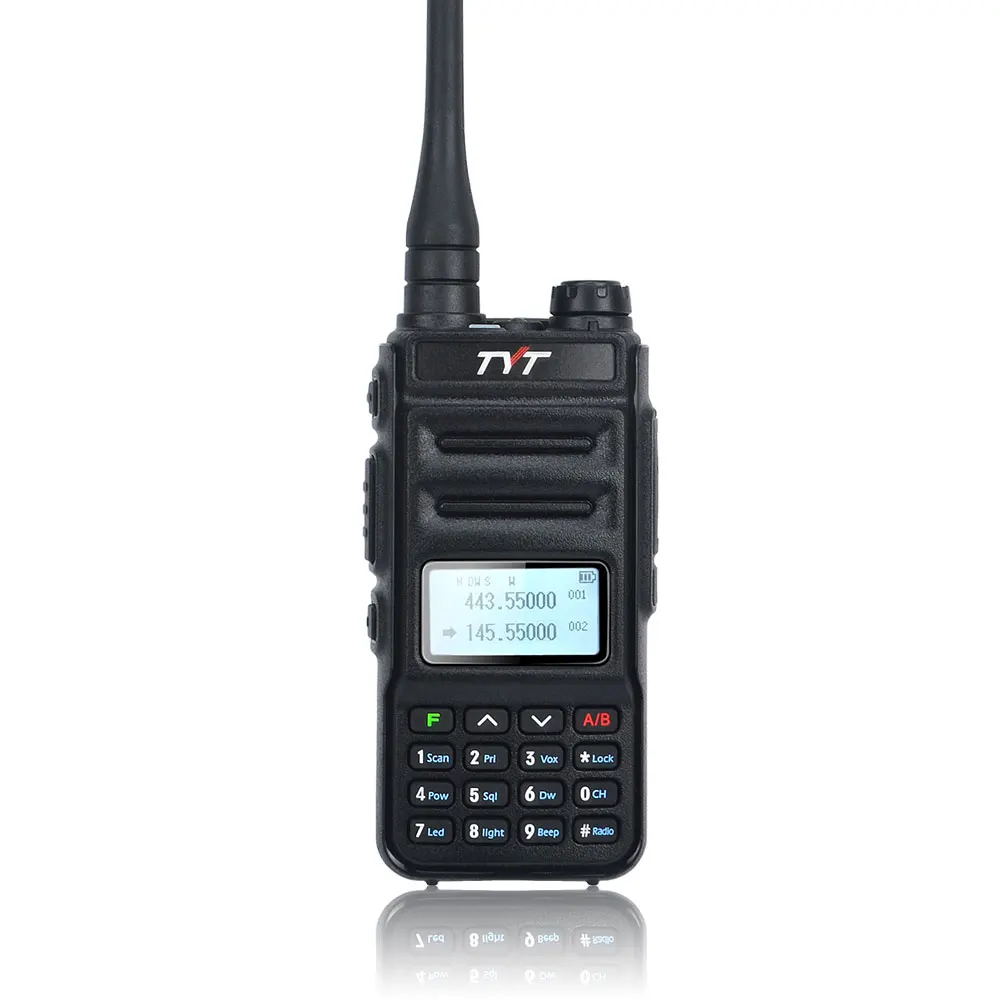

Photos:
