- Output Power(w): 5w-10w
- Battery Capacity(mAh): High Capacity
- Waterproof / Water-Resistant: No
- Material: Plastic
- Storage Channel: 128*2
- Frequency Range: 136-174/400-520MHz
- Dimensions: 13x6x3.5cm
- Model Number: TYT TH-UV8000D
- Walkie Talkie Type: Portable
- Is_Display: Yes
- Maximum Range: 5km-10km
- Brand Name: BAOFENG
- Origin: Mainland China

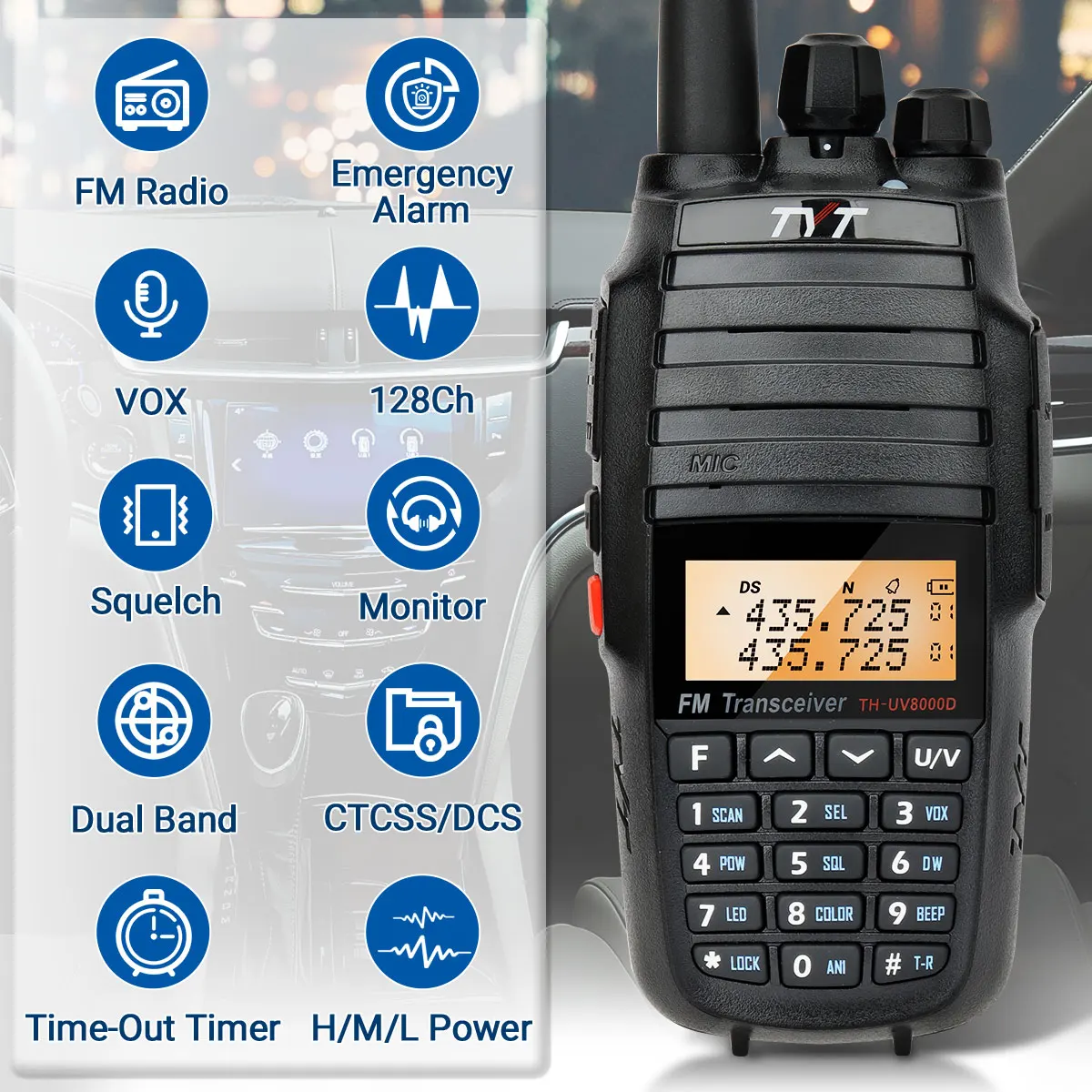

Feature:
1. 100% Brand New & Never Used
2. Dual band, dual display, dual standby
3. 2*128 channels to store
4. FM radio receiver and 25 channels
5. Channel spacing selectable (25/12.5 KHz)
6. Hand free VOX function
7. CTCSS/DCS encoding and decoding
8. Cross band function
9. Low battery alarm
10. Emergency Alarm
11. Shift repeater function
12. ANI function
13. DTMF & Remote kill/stun function
14. Reverse frequency function
15. Tri-color background light selectable
16. Chinese & English prompt
17. MSK
18. 1750 Tone
19. PC software programmable
20. Channel scan function
21. Busy channel lock-out (BCL)
22. Monitor function
23. Time-out timer (TOT)
Specification:
General |
|
Frequency range |
VHF:136~174MHZ |
Frequency Stability |
±2.5PPm |
Operating voltage |
DC 7.2V (Rechargeable Li-ion battery) |
Channel NO. |
128×2 |
Antenna impedance |
50 ohm |
Mode of operation |
Simplex or semi-duplex |
Battery capacity |
3600mAh |
Color |
Black |
Dimension(Exclude antenna) |
13x6x3.5cm |
Weight |
291g |
Receiver |
|
RF Sensitivity |
-122dBm(12dB SINAD) |
Audio power |
>0.5W |
Audio distortion |
<10% |
Blocking |
>=85dB |
Intermediation |
>=60dB, >=55dB |
Selectivity |
>=65dB, >=60dB |
Spurious rejection |
>=65dB |
Transmitter |
|
Output power |
<=10w, >=5W |
Modulation mode |
F3E |
Maximum deviation |
<5KHz/<2.5KHz |
Adjacent Ch. power |
<=-65dB/ <=-60dB |
Spurious radiation |
<7µW |
Pre-emphasis characteristics |
6dB |
Current |
<=2.8A(10W),<=1.8A(5W) |
CTCSS/DCS deviation |
0.55KHz±20.15KHz, 0.4KHz±20.1KHz |
Intermediation sensitivity |
8~12mV |
Intermediation distortion |
<5% |

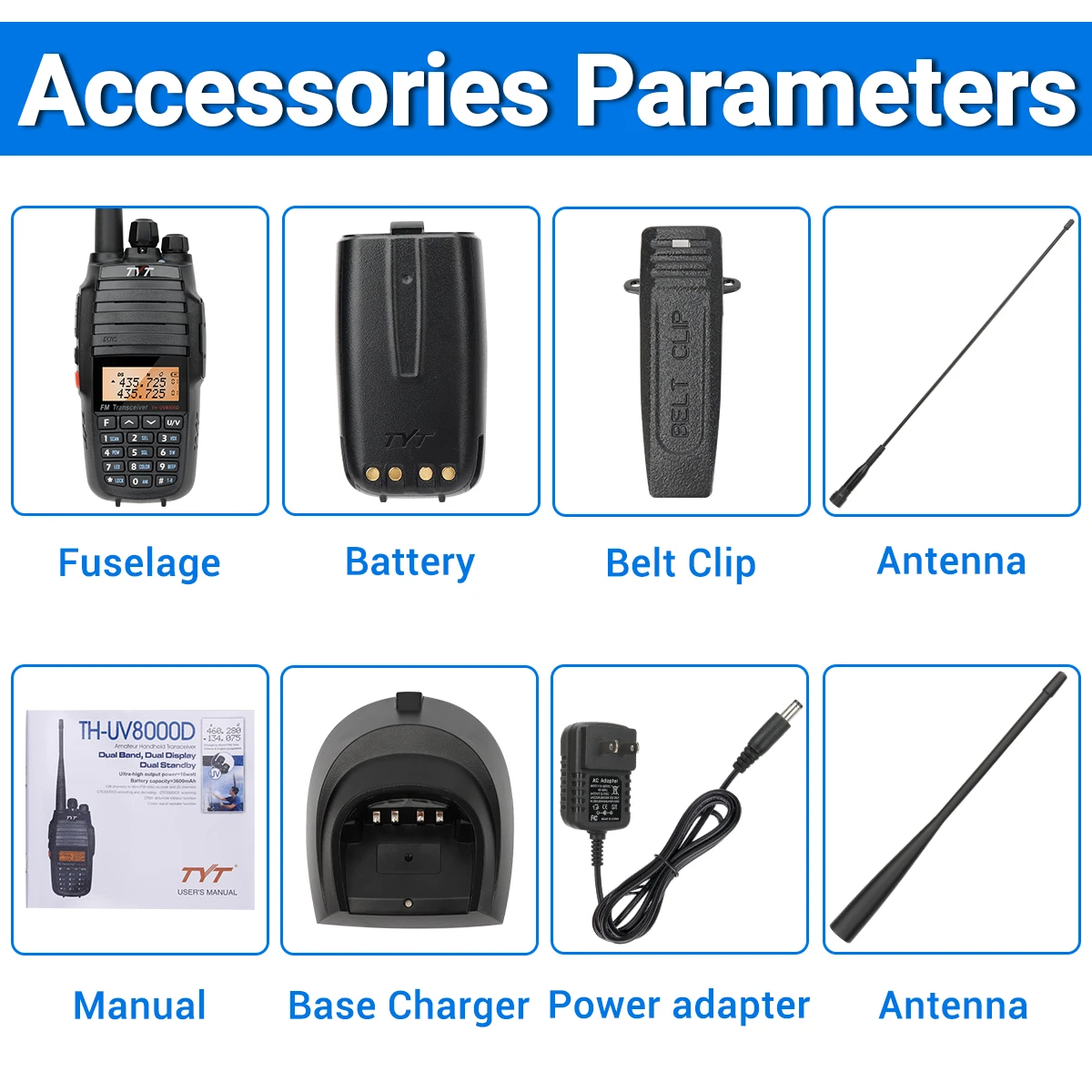

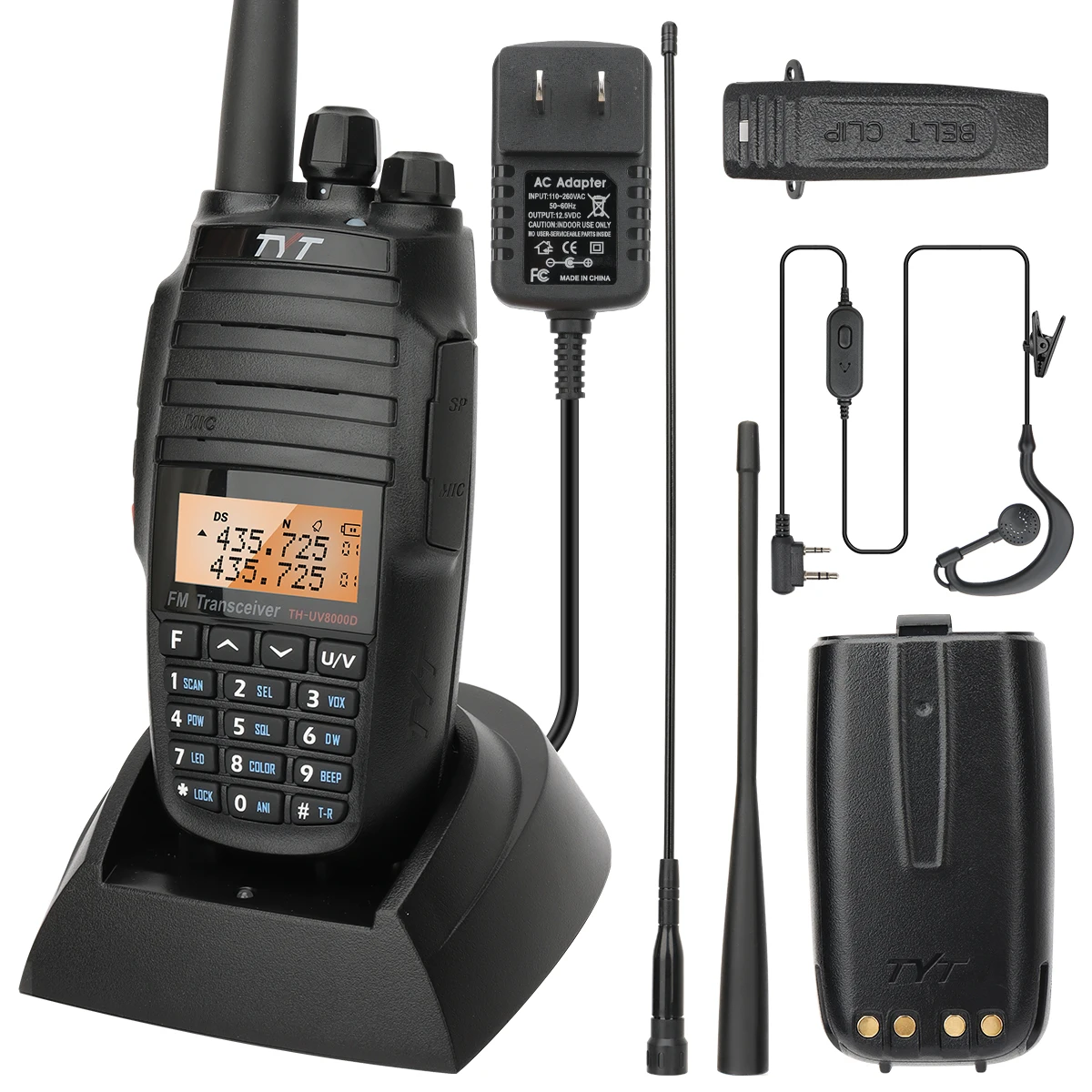

Package includes:
· 1 x Portable Radio

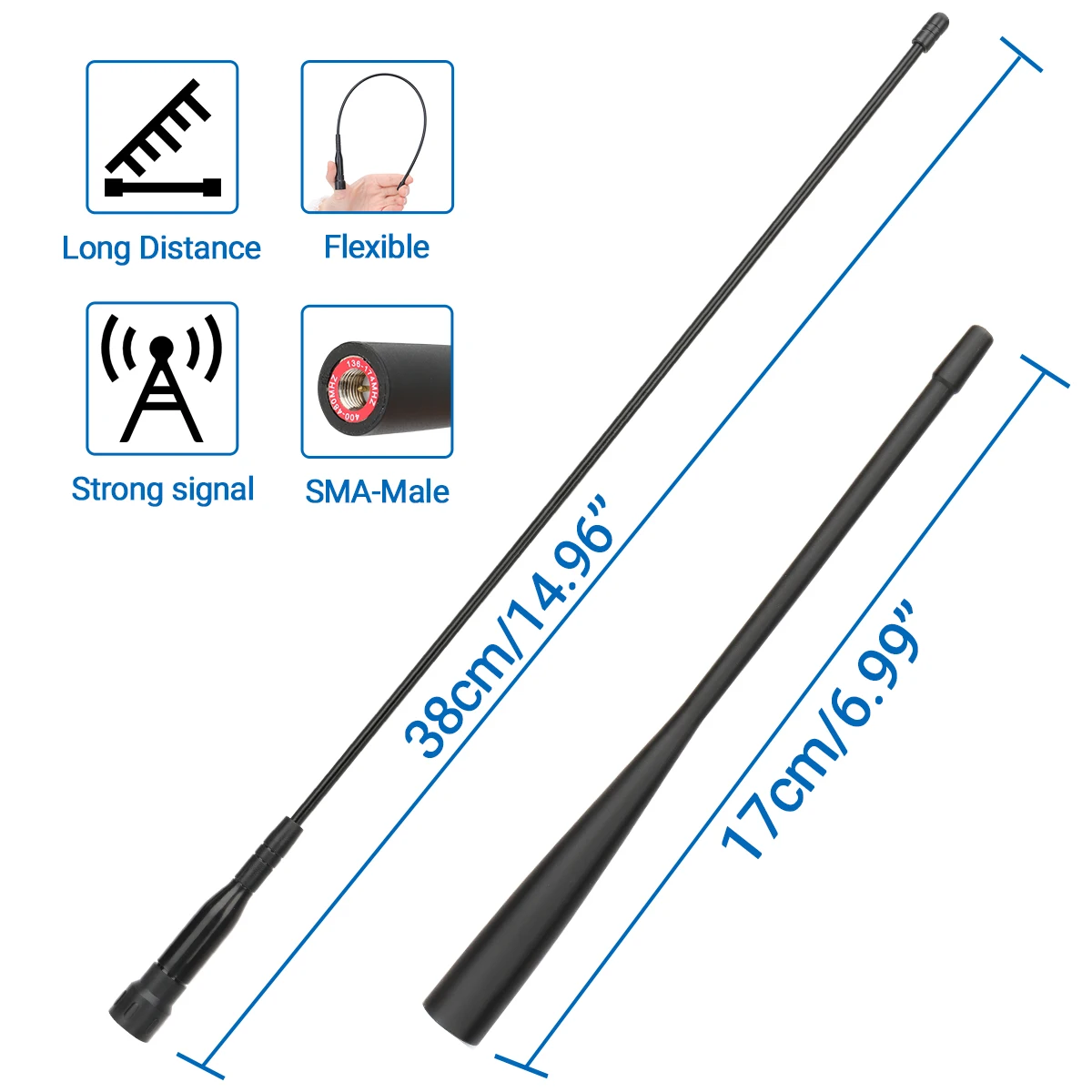

· 2 x Antennas
· 1 x Li-ion battery pack

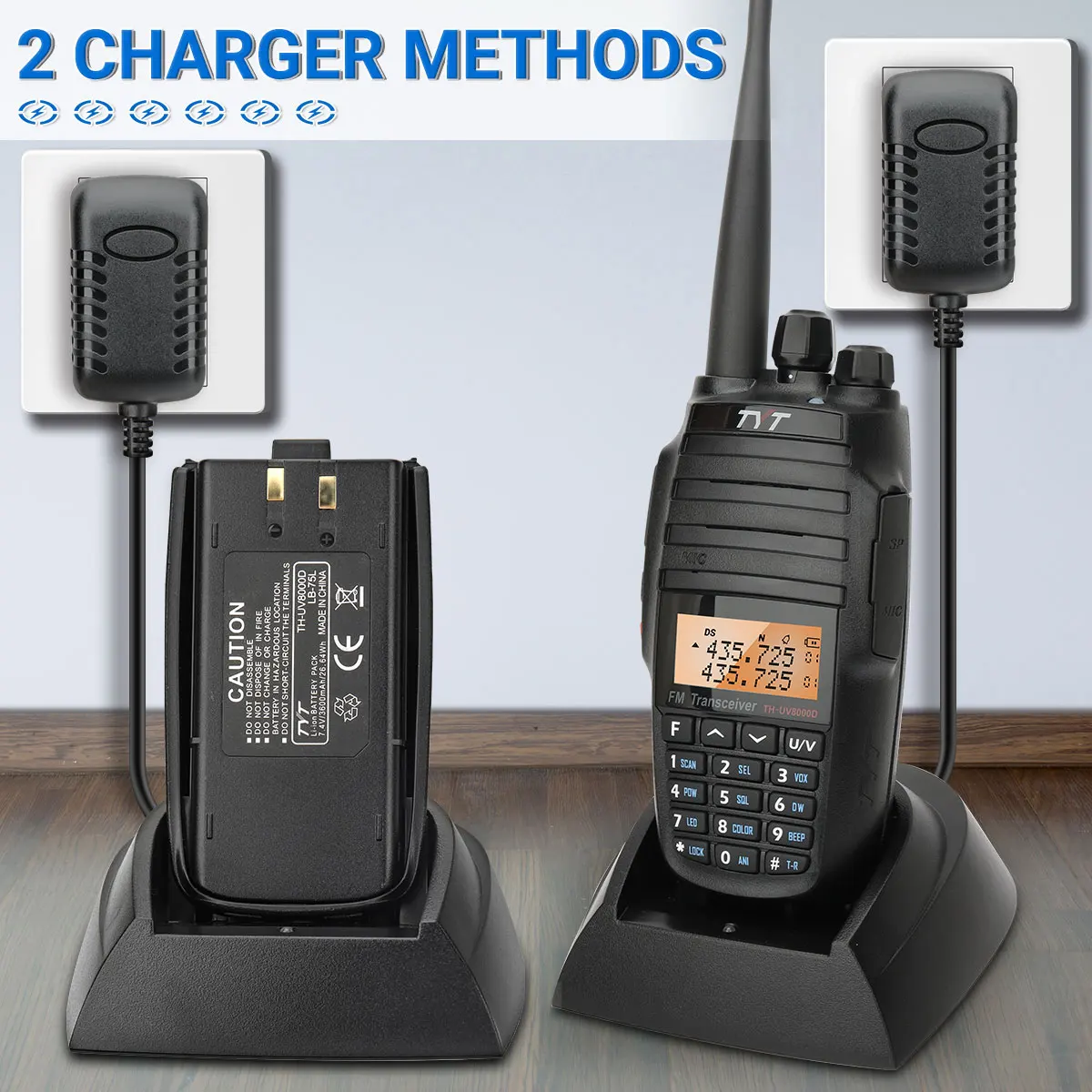

· 1 x Charger
· 1 x Belt clip
· 1 x Lanyard
· 1 x User`s manual
Unlock Communication with the TYT TH-UV8000D
Introducing the TYT TH-UV8000D – your ultimate companion for superior communication in any environment. This 10W Walkie Talkie stands out with its dual-band functionality, allowing you to maintain crystal-clear communication over long distances. Whether you’re embarking on an outdoor adventure, coordinating with your team, or simply staying connected, the TH-UV8000D is engineered to deliver.
Outstanding Features:
- High Power Output: With an impressive 10W output, this radio ensures robust range and clarity, ideal for professional use or recreational activities.
- Dual Band Functionality: Seamlessly switch between VHF (136-174 MHz) and UHF (400-480 MHz) frequencies, granting you the flexibility to communicate across various environments.

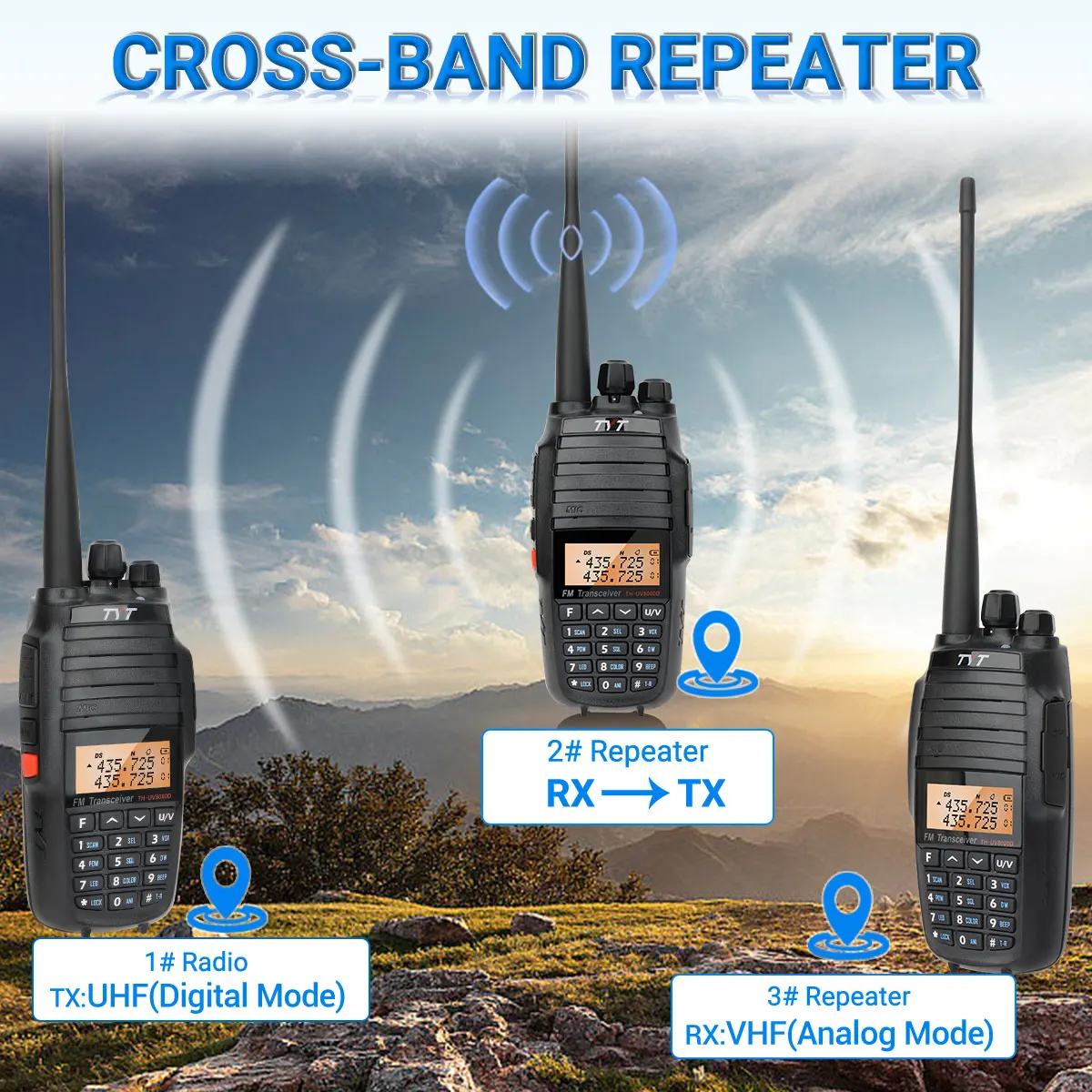

- Cross Band Repeater: Extend your communication reach by utilizing the cross-band repeater feature that amplifies your signal, making it indispensable in vast areas.

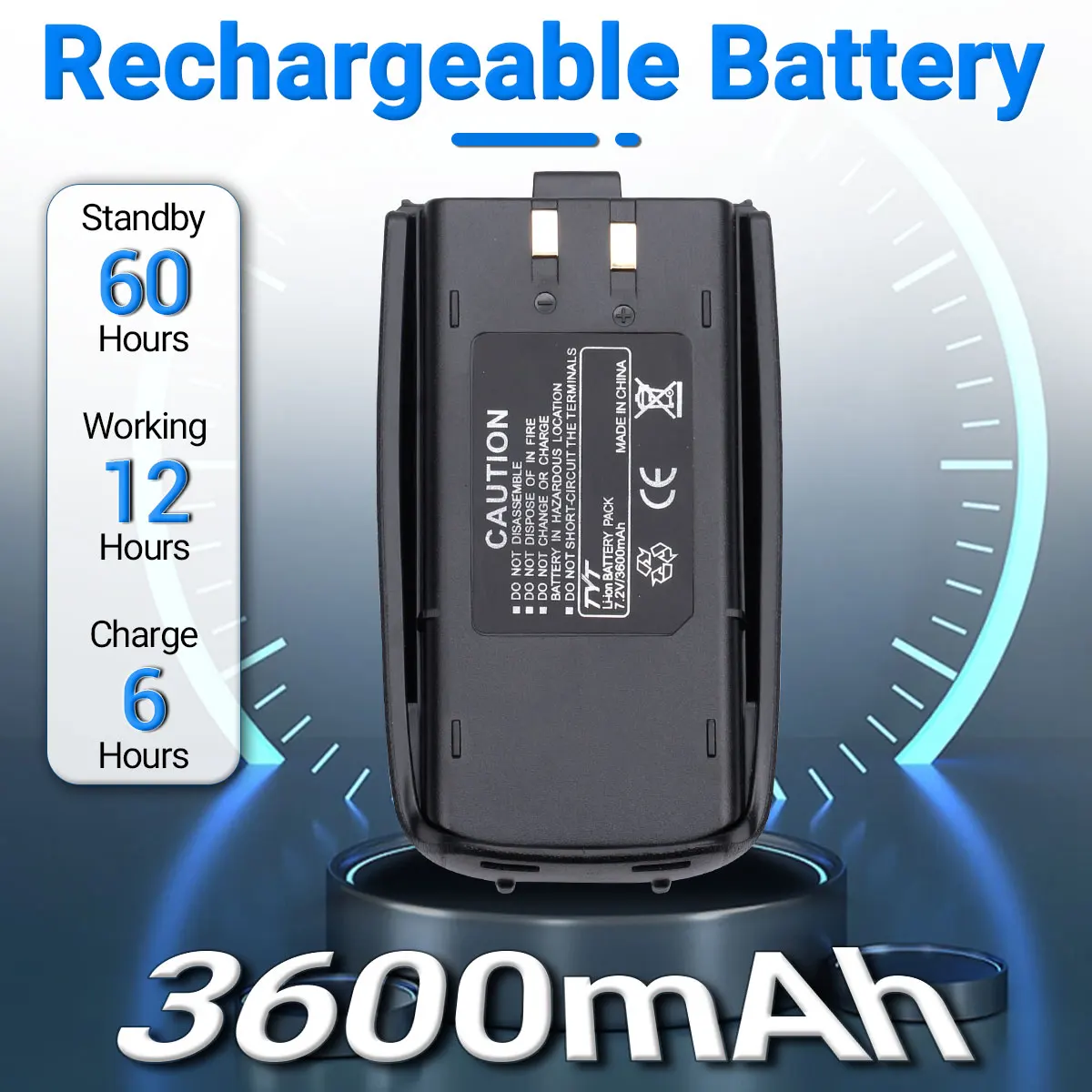

- Long Standby Time: Powered by a 3600 mAh battery, the TH-UV8000D boasts long-lasting performance, ensuring you stay connected even on extended outings.
- Advanced Scanning Features: Effortlessly monitor active channels and stay updated with the built-in scanning capabilities.
- User-Friendly Interface: The intuitive layout and large display make operation simple, whether you’re a seasoned ham operator or a first-time user.
Benefits and Value:
Choosing the TYT TH-UV8000D means investing in reliability and performance. Here’s what you can expect:
- Enhanced Communication: With its dual-band design and formidable output, enjoy uninterrupted conversations in various settings.
- Dependability: Built for grueling outdoor conditions, this radio is perfect for hikers, campers, and emergency personnel who need trustworthy equipment.
- Versatile Usage: From family expeditions to professional job sites, the TH-UV8000D adapts to any scenario, ensuring you’re always within reach.
- Portability: Compact and lightweight, it fits comfortably in your pocket, allowing you to carry it wherever you go without hassle.
Conclusion
The TYT TH-UV8000D is not just a walkie-talkie; it’s a high-performance communication tool that elevates how you connect with others. Don’t let distance hinder your conversations; embrace the power of reliable, clear, and long-range communication. Perfect for both enthusiasts and professionals alike, this two-way radio is your gateway to endless connectivity.
