- Output Power(w):Â 5w-10w
- Battery Capacity(mAh):Â 2000
- Waterproof / Water-Resistant:Â No
- Material:Â Plastic
- Storage Channel:Â 16
- Frequency Range:Â 136-174MHz & 400-480MHz
- Dimensions:Â 60x30x150mm
- Model Number:Â MD-UV380
- Walkie Talkie Type:Â Portable
- Is_Display:Â Yes
- Maximum Range:Â 5km-10km
- Brand Name:Â WAITOP
- Dimensions:Â 60x30x150mm
- Storage Channel:Â 1000 Channels
- Product Name:Â DMR Walkie talkie
- Color:Â Black
- Output Power:Â 5W
- Battery capacity:Â 2000mAh
- Feature:Â VHF UHF Dual band walkie talkie
- Function:Â LED display, FM transceiver,flashlight function
- Maximum Range:Â 1km-15km
- Certificate:Â CE FCC Rohs Certificate
- Frequency:Â Ask seller before ordering
Product Description

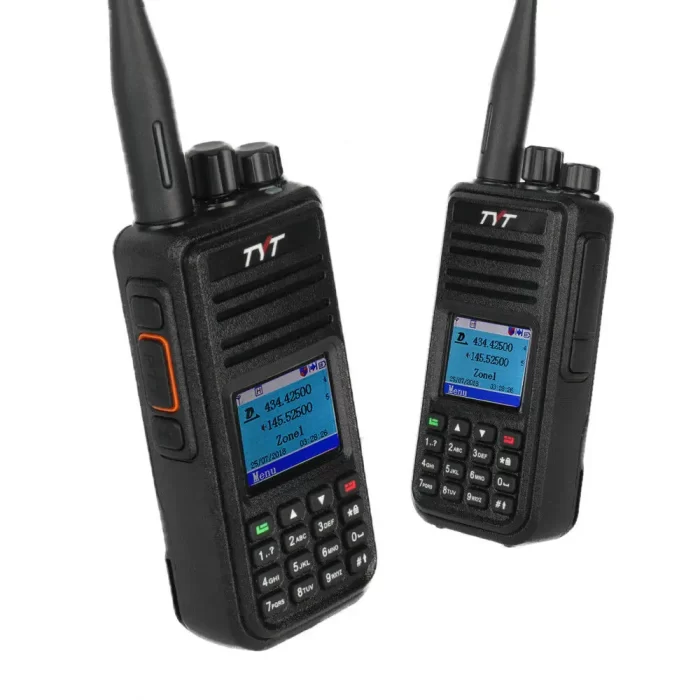

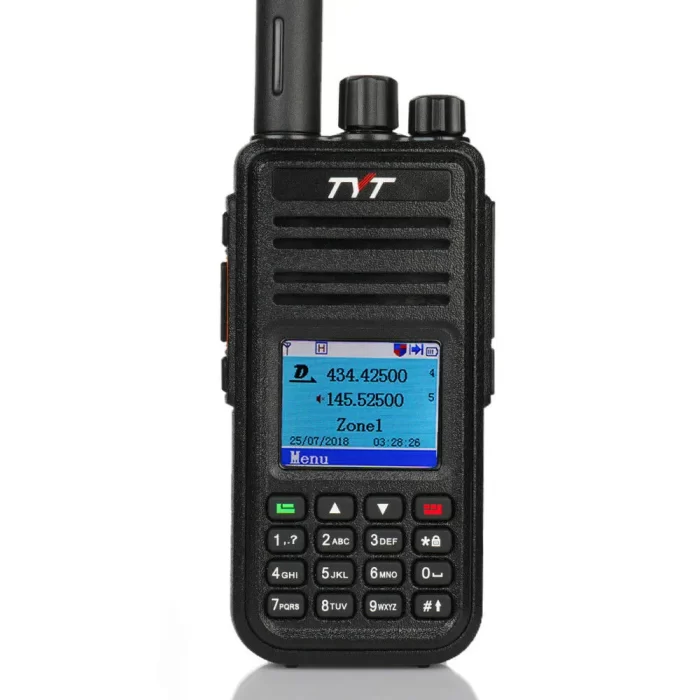

TYT DMR Digital Mobile Radio MD-UV380 Tytera Walkie Talkie 1000 Channel Professional Ham CB Radio Two Way Radio UHF VHF MD 380
Function
1. 1000 channels
2. Remote kill/stun/activate
3. Voice prompt
4. Power-on protection
5. Color LCD display
6. Text messages in digital mode
7. Encryption function
8. Built-in CTCSS/DCS
9. Up to 1000 channels
10. Priority scan
11. Complying with digital protocol ETSI TS 102 361-1,-2,-3
12. DTMF decoding and encoding
13. Updated software available for new features
14. Private call, group call, all call in digital mode
15. Operate in both Digital & Analogue mode
16. Allows easily migrate from analog to digital
17. Provide clearer voice communications in digital mode, throughout the coverage
 Â
Transmitter
Output power : <=5W(Max) , <=1W(Min)
Frequency Stability : ±1.0PPM
Adjacent Channel Power : <=-60dB
Free Time Slot Power : <=57dBm
Hum and Noise : -40dB12.5KHz
Spurious Radiation : Atenna:9KHz-1GHz <=-36dBm
1GHz-12.75GHz <=-30dBm
FM Modulation Mode : 12.5KHz:11K0 F3E
4FSK Digital Mode : 12.5KHz(data only):7K60FXD
12.5KHz(data +voice):7K60FXE
Modulation Maximum Deviation : 2.5KHz/12.5KHz
Nonactive Slot Power : -57dBm
Digital Protocol : ETSI TS 102 361-1 -2 -3
Vocoder Type : AMBE+2TM
Audio Response : +1dB~-3dB
Modulation BER(Bit Error Rate) : <=5%
Receiver
Analog sensibility : 0.35µV/-116dBm(20dB SINDA)
0.22µV/-120dBm(Type)
Digital sensibility : 0.3µV/-117.4dBm (BER 5%)
0.22µV/-110dBm (BER 1%)
Co-channel Rejection : >=-12dB
Adjacent Channel Selectivity : TIA603C:65dB ETSI:60dB
Spurious Response : TIA603C:75dB ETSI:70dB
Rated audio power : 1W
Audio response : +1dB~-3dB
Rated audio distortion : 3%(Type)
Spurious Radiation : Antenna:9KHz-1GHz <=-57dBm
1GHz-12.75GHz <=-47dBm
