- Output Power(w):Â 5w-10w
- Battery Capacity(mAh):Â 1500
- Waterproof / Water-Resistant:Â IP67
- Model Number:Â RS-35ME
- Walkie Talkie Type:Â Marine Walkie Talkie
- Is_Display:Â Yes
- Maximum Range:Â 5km-10km
- Brand Name:Â recent
- Origin:Â Mainland China
Description

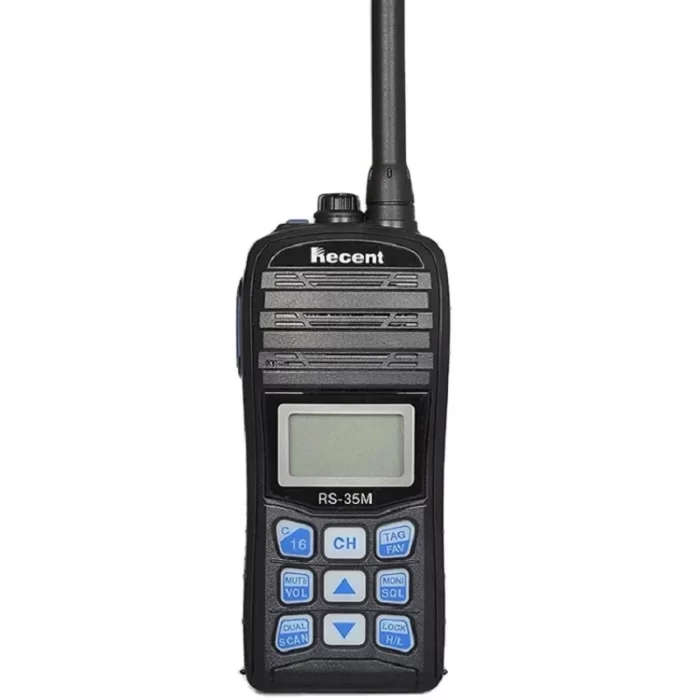

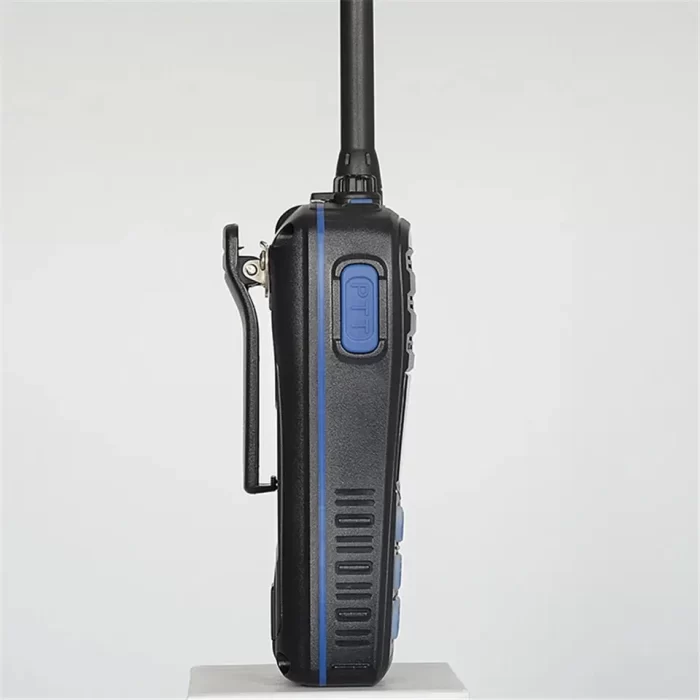

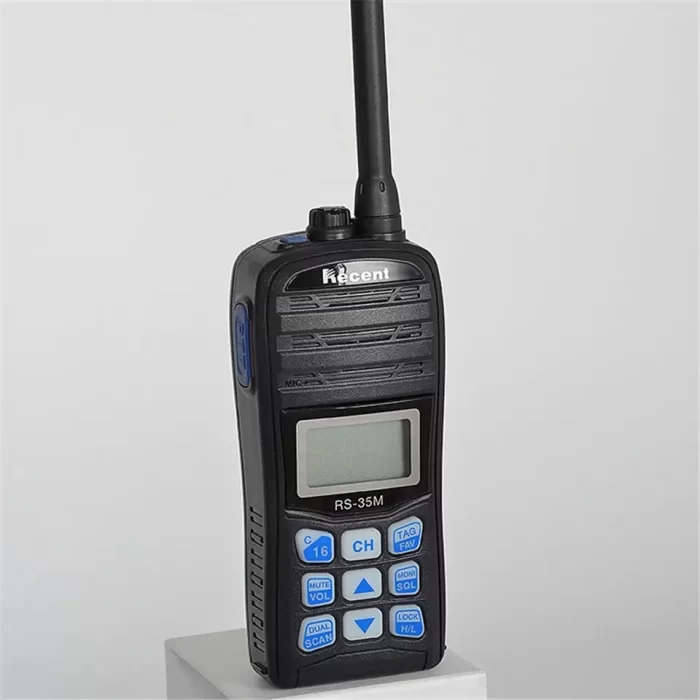

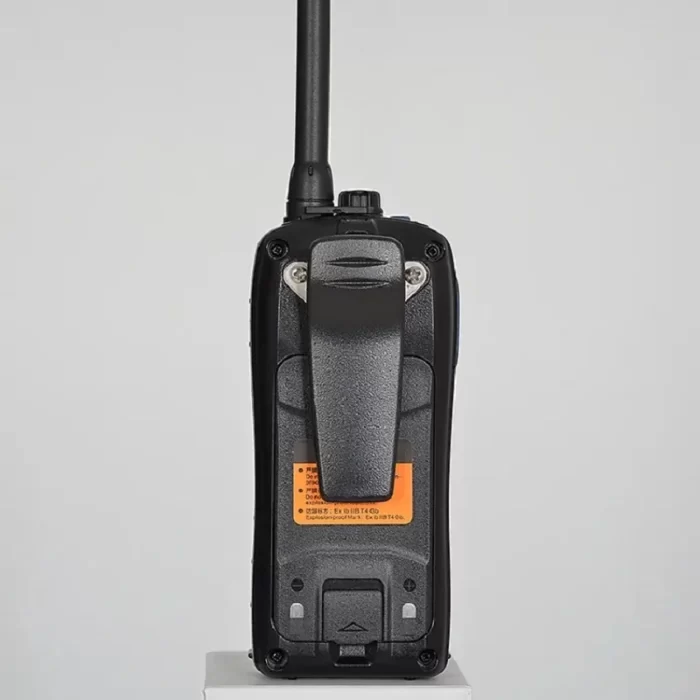

RS-35ME Explosive-proof Marine Radio is 5W, 88+70 channels, with 1200mAh Li-ion Battery. Talking Range around 10KM in an open area.
Advantages of two-way radio: convenient communication (Push to Talk), covering areas without signal, no any communication cost.
RS-35ME Explosive-proof Marine Radio is suitable for fishing boats, cargo ships, vessels, marine, etc.
Product Features:
Float Function
Vibration Draining Function
Dull/Tri-watch Functions
70 Programmable Channels
Call Channel Function
Powerful 5W Output Power
4-Step Battery Life Indicator
2-Step Power Saver
Auto Scan Function
Quick Channel Selection with Favourite Channel Function
Product Parameters:
Model Name: RS-35ME
Power Output: 5W/1W
Frequency: TX: 156.000-161.4500MHz RX: 156.000-163.425MHz
Battery Capacity: 1200mAh (DC 7.4 V)
Radio Size: 63x146x43 mm
Our Service:
For wholesalers, we have a professional team to provide ODM services.
For small/online resellers, we can provide OEM with low MOQ (only 50-100pcs). Let customers have their own brands at the least cost, control market prices, and earn more profits.
For end customers, we provide multiple free solutions at the fastest speed so that customers can buy their most satisfactory products in the shortest time and at the best price.
Float Function
Vibration Draining Function
Dull/Tri-watch Functions
70 Programmable Channels
Call Channel Function
Powerful 5W Output Power
4-Step Battery Life Indicator
2-Step Power Saver
Auto Scan Function
Quick Channel Selection with Favourite Channel Function
Model Name: RS-35ME
Power Output: 5W/1W
Frequency: TX: 156.000-161.4500MHz RX: 156.000-163.425MHz
Battery Capacity: 1200mAh (DC 7.4 V)
Radio Size: 63x146x43 mm
For wholesalers, we have a professional team to provide ODM services.
Specification:
General Specification |
|
Frequency Range |
TX:156.000-161.450MHz RX:156.000-163.425MHz |
Output Power |
5W/1W |
Type of Emission |
FM (16K0G3E) |
Battery Pack |
1200mAh Li-ion (DC 7.4V) |
Frequency Stability |
±2.5 PPM |
Operating Temperature |
-20℃~ +60℃ |
Antenna Impedance |
50Ω |
Dimensions (W × H × D) |
63mm × 146mm × 42mm |
Weight |
290g (With Belt Clip and Antenna) |
Transmitter
- Maximum Frequency deviation: ±5KHz
- Spurious Radiation: ≦0.25μw
- Adjacent Channel Power: >=70dB
- Audio Distortion: ≦10%
- Current consumption:Â
- ≦1.5A(High Power)
- ≦0.7A(Low Power)
- Audio Output: ≦0.2A(Max.)
Receiver
- Sensitivity: ≦0.22μV
- Squelch Sensitivity: ≦0.22μV
- SNR:≧40dB
- Adjacent Channel Selectivity: ≧70dB
- Spurious Response Immunity: ≧68dB
- Intermodulation Immunity:≧68dB
- Audio output power: ≧0.5W(10%)
Packing List:
1 x RS-35ME Marine Radio Body
1X Antenna
1X lithium Battery Pack
1X Power Charger
1X Belt clip
1X Strap
1X User Manual
