- Frequency Range: 430-440MHz
- Number of Channels: 16
- Power Voltage: 3.7V
- Operating Temperature: -10°C to +50°C
- Antenna Configuration: Gain Antenna
- Antenna Impedance: 50Ω
- Operating Mode: Same-Frequency Simplex or Different-Frequency Simplex
- Total Weight: 161g
- Dimensions: 109×54.5x32mm (excluding antenna)
- Battery Capacity: 1200mA
- Sensitivity: ≤0.2μV
- Occupied Bandwidth: 16KHz
- Channel Selectivity: ≥65dB
- Intermodulation: ≥55dB

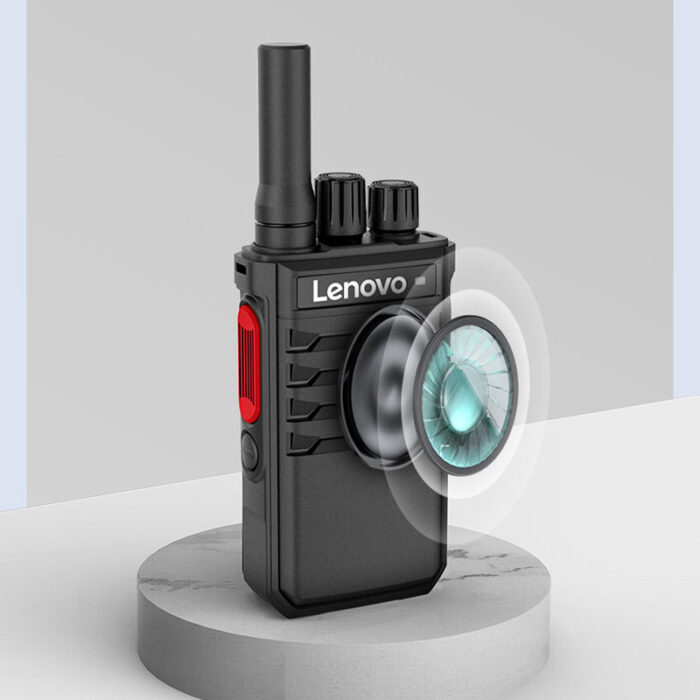

- Audio Output Power: >500mW
- Audio Distortion: ≤5%
- Frequency Tolerance: 5ppm
- Receiving Current: Standby 55mA, Talking 150mA
- Audio Response (300-3000Hz): +7dB to -12.5dB
- Base Frequency: 26MHz
- RF Power: 2W
- Modulation Mode: 16KFC3E
- Spurious RF Emission: ≤7.5μW
- Modulation Noise: <-40dB
- Modulation Distortion: <5%
- Frequency Tolerance: 5ppm
- Maximum Frequency Deviation: ±5KHz
- Transmitting Current: ≤1200mA
- Audio Response (300-3000Hz): +6.5dB to -14dB
- Adjacent Channel Power: ≥65dB
- Modulation Sensitivity: 812mV
