- Output Power(w): 5w-10w
- Battery Capacity(mAh): 2800
- Waterproof / Water-Resistant: No
- Material: ABS+PC
- Storage Channel: 128
- Frequency Range: VHF 136-174 MHz UHF 400-520MHz
- Dimensions: 112*60*35mm (not include antenna )
- Model Number: Baofeng BF-UVS9 PLUS
- Walkie Talkie Type: Portable
- Is_Display: Yes
- Maximum Range: 5km-10km
- Brand Name: BAOFENG
- Origin: Mainland China
- Certification: CE,FCC
- 2.With optional methods to charge the battery.Multiple charging mode.
- 3.Frequency Range: VHF: 136-174MHz (RX/TX), UHF: 400-520MHz (RX/TX), 65-108MHz (Only commercial FM radio reception). Channels:128 groups of storage channels,Broadband (Wide) 25khz / Narrowband (Narrow) 12.5khz Selectable.
- 4.Larger Capacity Li-ion Battery Equipped with a 2800mAh Li-ion battery. UV-S9 Plus is light weight and handy.Simply press PTT key to talk: even at night by switching on the built-in LED flashlight and built-in VOX Function hands-free communication.
- 5.Special service:A link to the special Baofeng UV-S9 Plus programming software and firmware can be provided free of charge according to your requirement

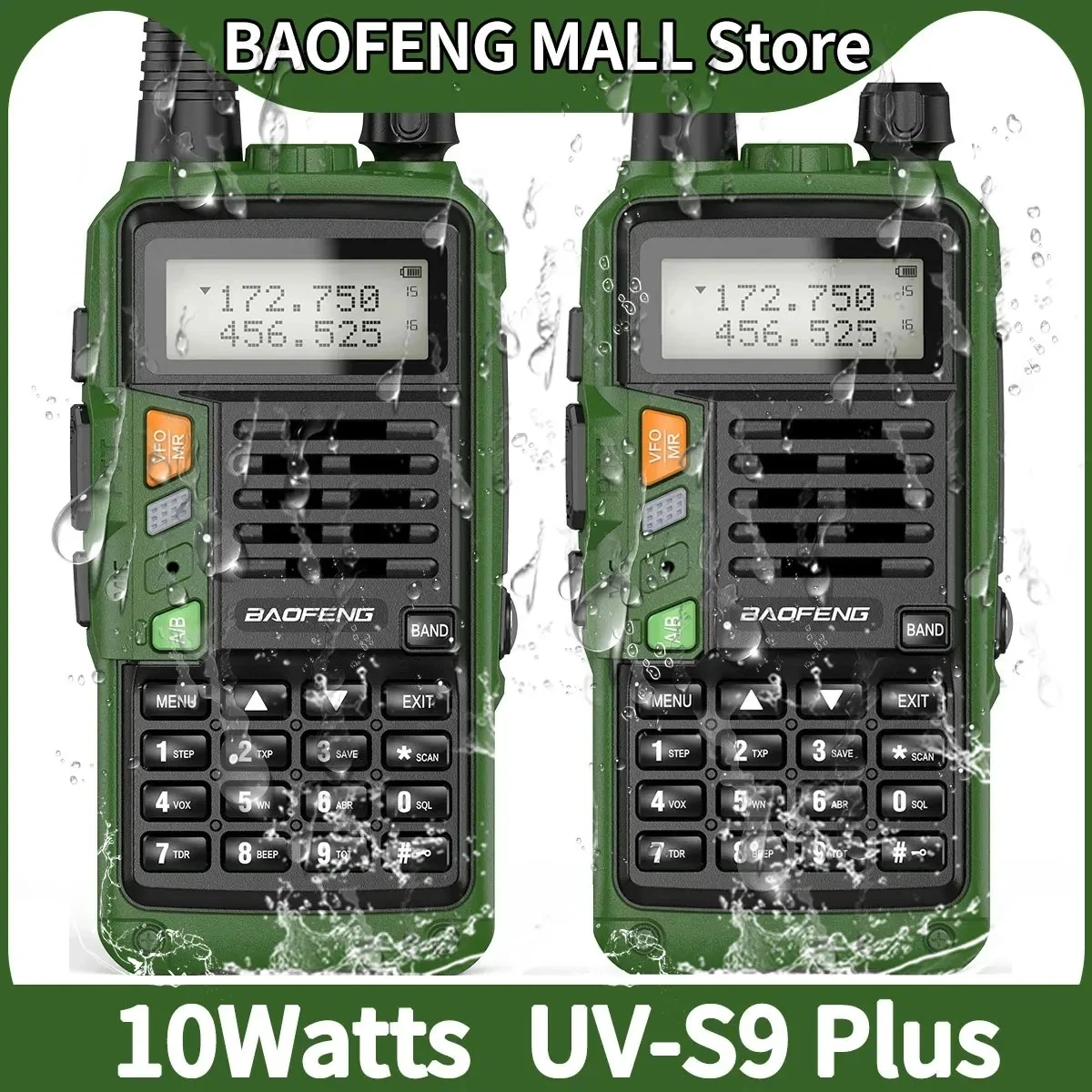

UV-S9 PLUS
Feature:
1. 100% Brand New & Never Used
2. Dual-band handheld transceiver with display function menu on the display “LCD”
3. DTMF encoded
4. Lithium-ion battery with high capacity
5. Commercial FM radio receiver (65MHz~108MHz)
6. Incorporates 105 codes “DCS” and 50privacy codes “CTCSS” programmable
7. Function “VOX”(voice operated transmission)
8. Alarm function
9. Up to 128 memory channels
10. Broadband (Wide)/Narrowband (Narrow), selectable
11. High/low power selectable
12. Display illumination and programmable keyboard
13. Function “beep” on the keyboard
14. Dual Watch/dual reception
15. Selectable Frequency Step
16. Function “OFFSET” (frequency offset for repeater access)
17. Battery saving function
18. Timer transmission “TOT” programmable
19. Selecting the Scan Mode
20. Busy Channel Lock
21. Built-in RX CTCSS/DCS scan
22. Built-in LED flashlight
23. Programmable by PC
24. Level Threshold “Squelch” adjustable from 0 to 9
25. Cross band reception
26. Tone end of transmission
27. Built-in key lock
Specification:
| General | ||
| Frequency range | VHF:136MHz-174MHz(Rx/Tx) UHF:400MHz-520MHz(Rx/Tx) 65MHz-108MHz(Qnly commercial FM radio reception) | |
| Memory channels | Up to 128 channels | |
| Frequency stability | 2.5ppm | |
| Frequency step | 2.5/5/6.25/10/12.5/25KHz | |
| Antenna impedance | 50 OHM | |
| Operating temperature | -20°C-60°C | |
| Supply voltage | Rechargeable Lithium-Ion 7.4V | |
| Battery Capacity | 2800mAh | |
| Consumption in standby | <=75mA | |
| Consumption in reception | 380mA | |
| Consumption in transmission | <=1.4A | |
| Mode of operation | Simplex or semi-duplex | |
| Dimensions | 110x58x32mm | |
| Weight | 130g(approximate) | |
| Transmitter | ||
| RF power | 10W/1W | |
| Modulation type | FM | |
| Emission class | 16K øF3E/11KøF3E(W/N) | |
| Maximum deviation | <=±5KHz/<=±2.5KHz(W/N) | |
| Spurious emission | <-60dB | |
| Receiver | ||
| Receiver sensitivity | 0.2µV (at 12 dB SINAD) | |
| Inter modulation | 60dB | |
| Audio output | 1000mW | |
| Adjacent channel selectivity | 65/60dB | |
Package include:
2 X Portable radio
2 X Inductively loaded antenna
2 X 2800mAh Li-ion battery pack
2 X LI-ion charger
2 X Belt clip
2 X The Sling
2 X User’s manual
(Not include the usb charger cable.)
Any accessories depend on your choice
