- Output Power(w): 5w-10w
- Battery Capacity(mAh): High-Capacity
- Waterproof / Water-Resistant: IP45
- Material: Plastic
- Storage Channel: 999
- Frequency Range: Full Band
- Dimensions: 130mmx58mmx40mm
- Model Number: UV-5RH
- Walkie Talkie Type: Portable
- Is_Display: Yes
- Maximum Range: 5km-10km
- Brand Name: BAOFENG
- Origin: Mainland China
- Certification: CE
- Series: Upgraded UV-5R
- Function 1: Wireless Copy Frequency
- Function 2: True 10W
- AM: 108-136MHz
- FM: 65-108MHz

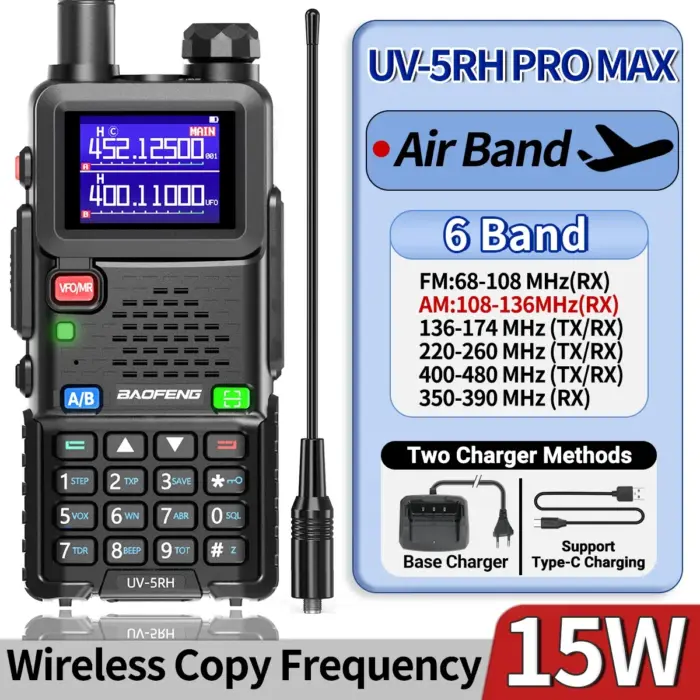

★【6 Band Frequency】
68-108 MHz (Only RX)
350-370 MHz (Only RX)
108-136 MHz (Air frequency receiving)
136-174 MHz (TX/RX)
220-260 MHz (TX/RX)
400-480 MHz (TX/RX)

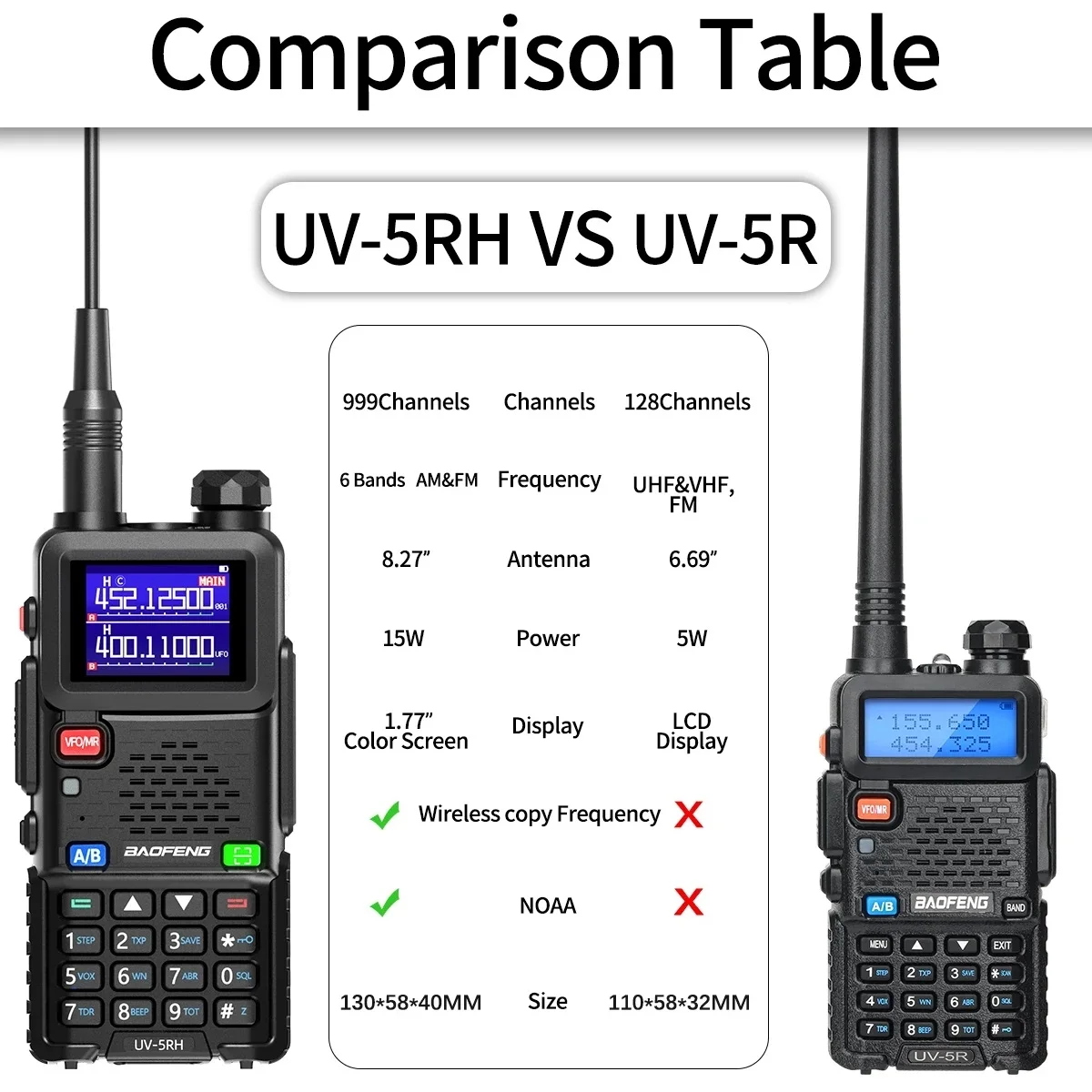

★【Upgraded UV-5R】
UV-5RH is a professional ham radio, 15W high power, High/Mid/Low Tri-Power Switchover. Up to 999 Channels.1.77 inch color screen.
★【Wireless Copy Frequency 】

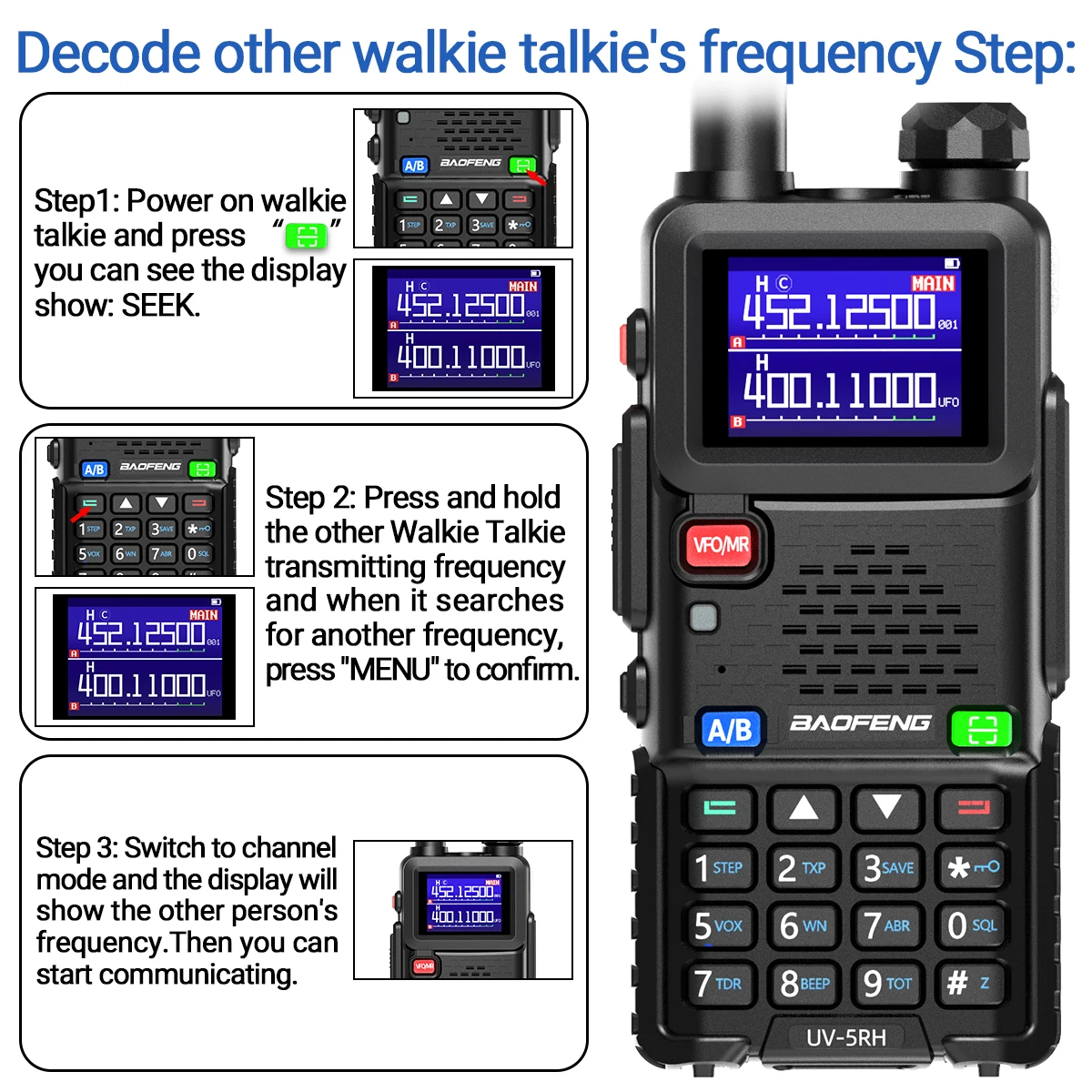

Press the EXIT button to enter the“FQSCAN”interface. Press EXIT again and the UV-5RH will search for another radio transmission frequency and privacy code. Finally press the menu to store the frequency. Two walkie-talkies can communicate normally. Communication is unobstructed, and traditional writing frequency is rejected.
★ 【Type-C USB Charging 】
Type-C charging is a trend for mobile devices as it has low requirements for power sources and places. The UV-5RH is Type-C USB rechargeable, for which you can easily charge it like a phone in your car, with a power bank or laptop. Portable for your go-kit.
★【LED Flashlight】
LED spotlight, life emergency helper, Powerful, it can also change into a flashlight in seconds, lighting up your dark night anytime, anywhere.
★【PC & Manual Programmable】
Apart from programming the radio via computer software, users can also use the keypad to program most settings in the menu, for example, adding/deleting a memory channel, adding/removing a channel from the scanning list, adjusting VOX/squelch/power save levels, etc.
|
AllofouritemsareBrandNew |
||
|
Model |
BaofengUV-5RH |
|
|
Dual Band/Dual Display/Dual Standby |
A/Bbandindependentoperation(UVUUVV) |
|
|
128groupschannelsstorage |
Shortcutmenuoperationmode |
|
|
VFO&Memorychannelsscan |
EmergencyAlarm |
|
|
Time-outTimer(TOT) |
0~9gradesVOXselectable |
|
|
PTT&ANIID |
FMradioand25stationsstorage |
|
|
Voicecompanding |
50CTCSS/104DCS |
|
|
High/LowTXpowerselectable |
Busychannellock-out(BCLO) |
|
|
DTMFfunction |
OFFSETfunction |
|
|
Wide/NarrowBand(25kHz/12.5kHz) |
Yes |
|
|
VOXfunction |
Yes |
|
|
Busylockoutfunction |
Yes |
|
|
Scanningfunction |
Yes |
|
|
Monitorfunction |
Yes |
|
|
Time-outTimer(TOT)function |
Yes |
|
|
LCD display |
Yes |
|
|
Dual display |
Yes |
|
|
Batteryvoltagedisplayfunction |
Yes |
|
|
Channelnamedisplayandeditingfunctions |
Yes |
|
|
Signalstrengthindicator |
Yes |
|
|
Keypadlockfunction |
Yes |
|
|
Built-inLedtorch |
Yes |
|
|
FMradio |
Yes |
|
|
Wireclonefunction |
Yes |
|
|
Emergencyalarmfunction |
Yes |
|
|
Lowbatteryalarm |
Yes |
|
|
Powersavingfunction |
Yes |
|
|
High/MID/LowTXpowerselectable |
Yes |
|
|
ROGERSET |
YesYes |
|
|
ChineseandEnglishvoiceprompt |
Yes |
|
|
PCsoftwareprogrammable |
Yes |
|
|
RatedVoltage |
7.4VDC±10% |
|
|
Outputpower |
<=5W |
|
|
Batterytype |
Li-ionbattery |
|
|
Batterycapacity |
High Capacity |
|
|
Workingtemperature |
-20~+50°C |
|
|
AntennaImpedance |
50ohm |
|
|
Weight |
300g |
|
|
Dimension(LXWXH) |
58X40X130mm(NotAntenna) |
|
|
Frequencystability |
±2.5ppm |
|
|
Carierwavetolerance |
5ppm |
|
|
Modulation |
16K Ø F3E/11K Ø F3E |
|
|
Maxfrequencydeviation |
<5kHz(Wide) |
|
|
Modulationcharacter |
6dBperfoldfrequencypatch |
|
|
Emissioncurrent |
<1.6A(5W) |
|
|
CTCSS/DCS |
0.5±0.1kHz(Wide) |
|
|
Sensitivity |
<0.16µV(12dBSINAD) |
|
|
Silentsensitivity |
<0.2µV |
|
|
IntermediationDistortion |
<10% |
|
|
Intermodulation |
8-12mv |
|
|
Adjacentchannelselectivity(wide/narrow) |
<-65dB(Wide)<-60dB(Narrow) |
|
Package Include:
1X Portableradio
1X Antenna
1 X USB
1X Li-ion battery pack
1X Belt clip
1X The sling
1X User’s manual
UV-5RH Pro Max 15W Air Band Walkie Talkie
Step into the world of seamless communication with the UV-5RH Pro Max 15W Air Band Walkie Talkie. This highly advanced device is engineered to elevate your connectivity while boasting features that serve both amateur enthusiasts and professional users.
Unmatched Power & Coverage
With an impressive 15W output, the UV-5RH Pro Max ensures long-range communication, making it ideal for outdoor adventures, aviation enthusiasts, and emergency responders. It covers a vast range of frequencies, delivering clear audio even over challenging terrains.
Innovative Features
- Tri Power Modes: Choose from low, medium, or high power settings to suit your communication needs.
- Type-C Charging: Experience modern convenience with the easy-to-use Type-C charging port, promoting quick and versatile power options.
- NOAA Weather Alerts: Stay informed and safe with built-in NOAA weather channels, giving you instant access to weather updates and warnings.
- Wireless Frequency Copy: Effortlessly replicate frequencies, allowing for simplified channel sharing and setup with other devices.
Benefits Beyond Communication
The UV-5RH Pro Max is more than just a walkie-talkie; it’s a tool designed to enhance your experience in various settings:
- Safety First: Ideal for camping, hiking, and emergency situations, ensuring you’re always connected.
- Versatile Applications: Perfect for aviation communication, outdoor activities, and even as a reliable tool for events.
- Durable Build: Designed to withstand the rigors of outdoor use, ensuring longevity and reliability wherever you go.
- User-Friendly Interface: Navigate features effortlessly with an intuitive design suitable for all skill levels.
Value-Added Connectivity
The UV-5RH Pro Max represents the pinnacle of communication technology, blending functionality with modern design. Enjoy the peace of mind that comes with knowing you have a reliable companion for all your connectivity needs. Whether you’re an aviation aficionado, a nature lover, or someone in need of dependable communication tools, this walkie-talkie is designed to meet and exceed expectations.
Embrace a new era of communication. Choose the UV-5RH Pro Max 15W Air Band Walkie Talkie and take the first step towards ultimate connectivity!
