- Output Power(w): 3w-5w
- Battery Capacity(mAh): 2200
- Waterproof / Water-Resistant: IP45
- Material: Plastic
- Storage Channel: 1024
- Frequency Range: VHF 136-174MHz / UHF400-470MHz
- Dimensions: 136*62*36mm(Antenna Not include

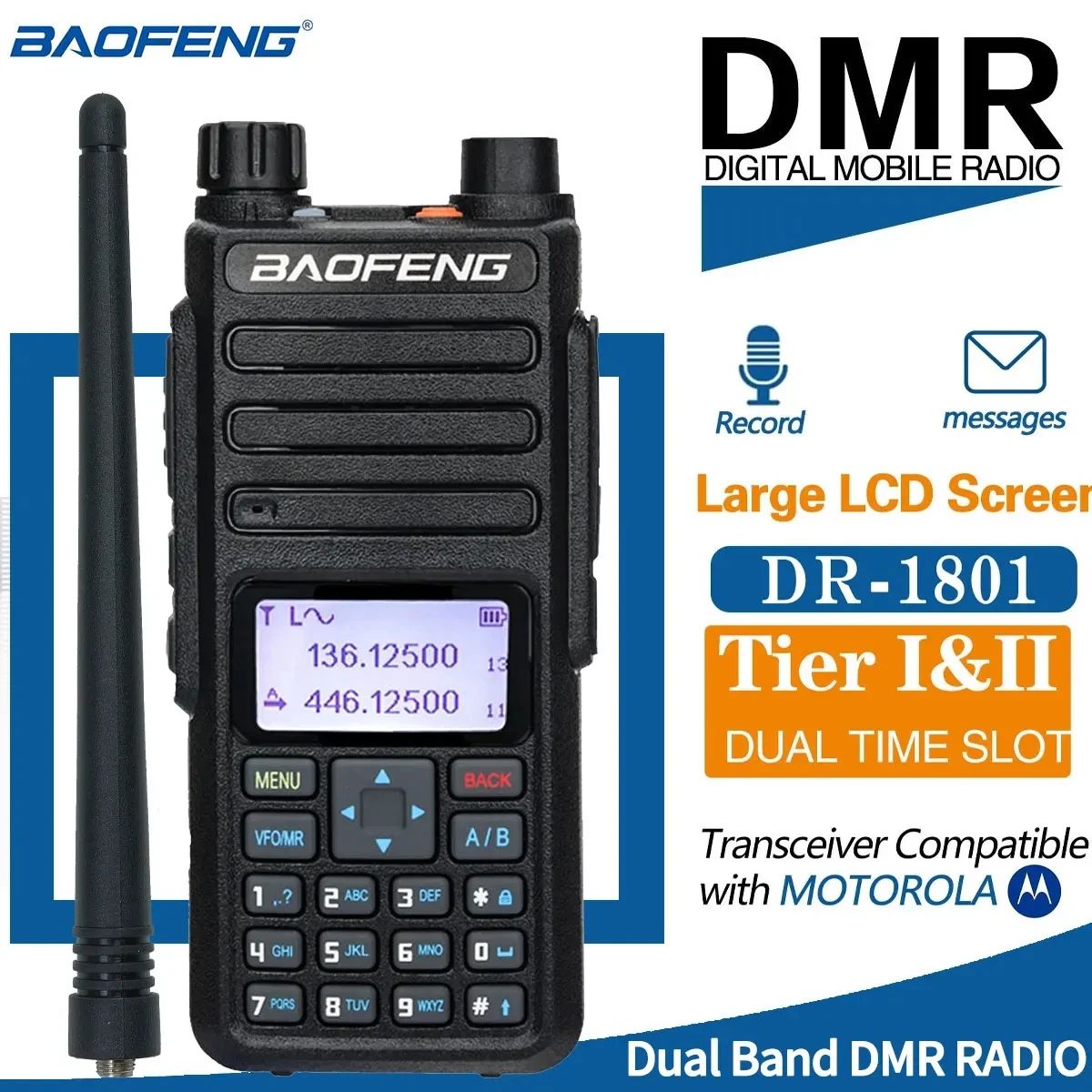

- Model Number: DR-1801
- Walkie Talkie Type: Portable
- Is_Display: Yes
- Maximum Range: 5km-10km
- Brand Name: BAOFENG
- Origin: Mainland China
Specifications:
|
General |
|
|
Frequency Range |
VHF:136-174MHz, UHF:400-470MHz (Dual Band) |
|
Memory Channel |
1024 |
|
Operating Voltage |
DC 7.4V |
|
Frequency stability |
±1.0ppm |
|
Demission |
133*62*32mm (no including the antenna) |
|
Operating environment |
-30℃-+60℃ |
|
Weight |
Approach.274g(including the battery and antenna) |
|
Transmitter |
|
|
Output power |
High:5W Low:1W |
|
Adjacent channel power |
≤65dB ≤60dB |
|
Output consumption |
Analog≤1.6A Digital≤0.9A |
|
Audio response |
+1~3dB |
|
Standby current consumption |
≤0.18A |
|
Digital Protocol |
ETSI-TS102 361-1,-2,-3 |
|
Modulation distortion |
≤5% |
|
Vocoder type |
AMBE+2 TM |
|
FM/FM modulation: |
16K￠F3E,25KHz 141K￠F3E,20KHz 11K￠F3E,12.5KHz |
|
4FSK/4FSK digital modulation |
12.5KHz for data:7K60FXD 12.5KHz for data and voice:7K60FXE |
|
Signal-to-noise(wide/narrow) |
≥45dB,25KHz ≥40dB,12.5KHz |
|
Antenna Port Spurious |
9KHz-1GHz ≤-36dBm 1GHz-12.75GHz: ≤-30dBm |
|
Receiver |
|
|
Analog receive sensitivity |
-122dBm (12dB SINAD) |
|
Digital receive sensitivity |
-122dBm (BER≤5%) |
|
Audio power |
1W |
|
Audio distortion |
<10% |
|
Signal imitation |
≥70dB |
|
Audio response |
+1~3dB |
|
Receive current |
≤380mA |
|
Intermediation(wide/narrow) |
≥62dB/≥58dB |
|
Adjacent channel selectivity |
≥65dB/≥60dB |
|
PM noise |
≥45dB,25KHz / ≥40dB,12.5KHz |
Package Contain:
1× BAOFENG DR-1801
1× 2200mAh Li-ion Battery Pack
1× Charger Unit with AC Adapter
1× Antenna
1× Hand Strap
1× Belt Clip
1× Earpiece
1× User Manual
(And other accessory depend on your choice in the link)
