Baofeng DM-1701 DMR Walkie Talkie - Dual Mode Analog & Digital Long Range

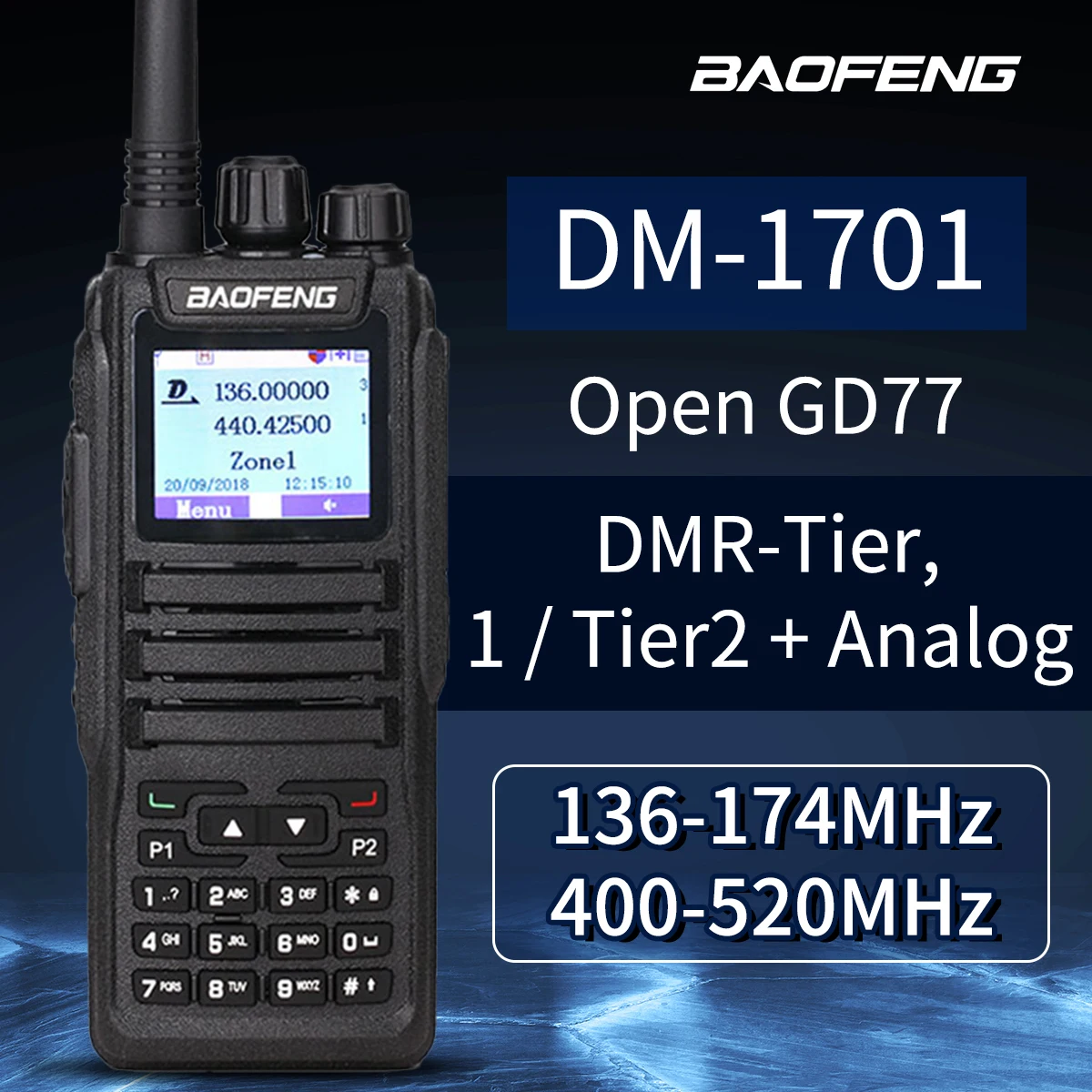

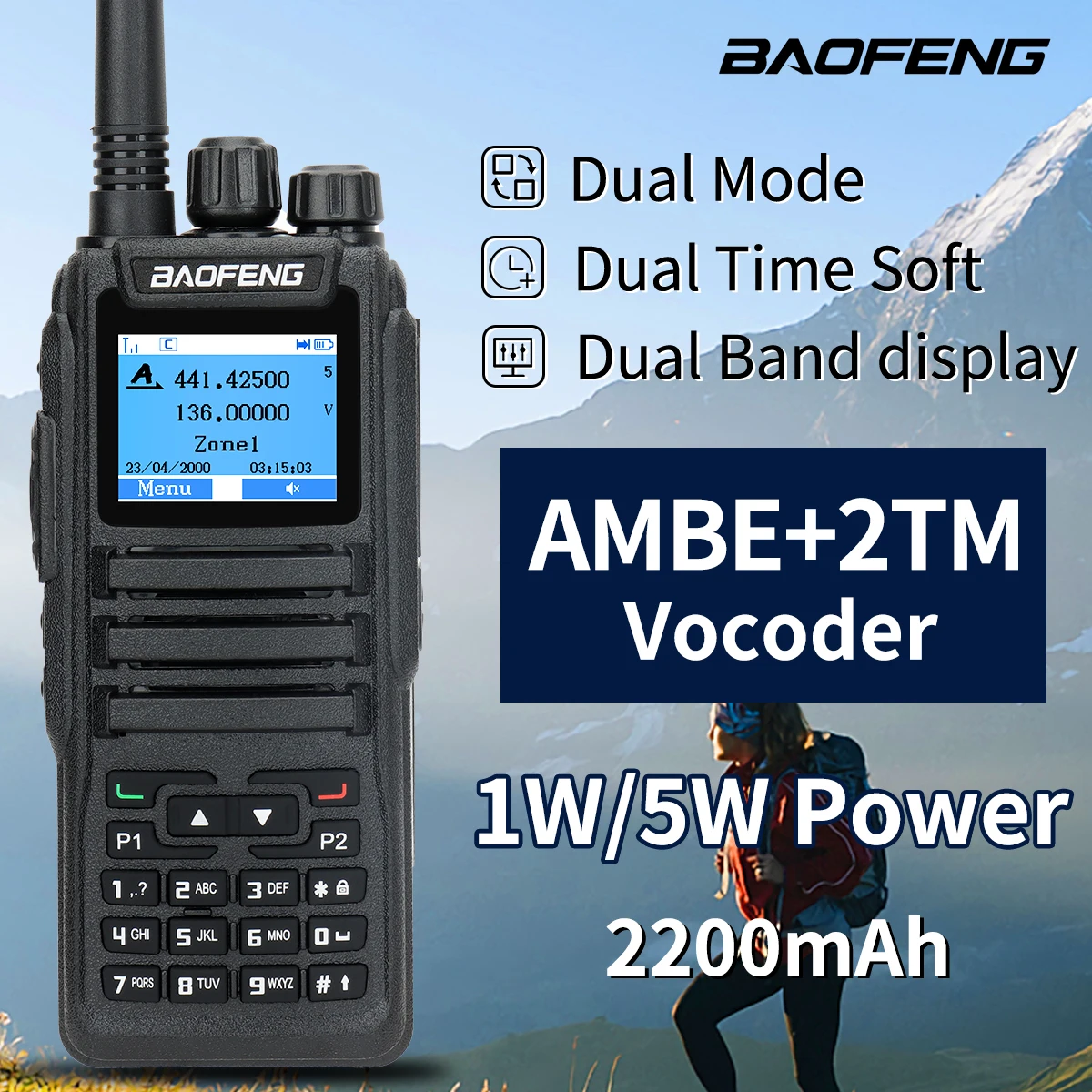

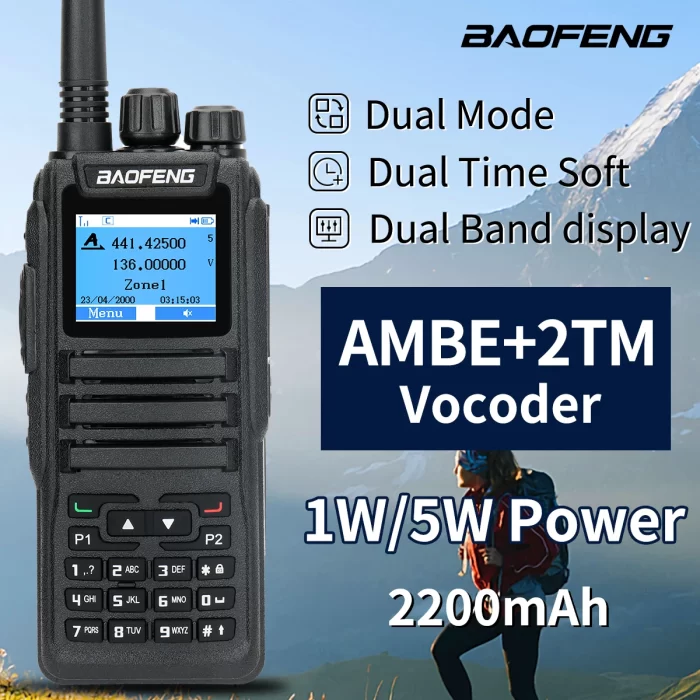

Baofeng DM-1701 DMR Walkie Talkie: Dual Mode Analog & Digital Ham Radio for Long Range Communication

$51.00 – $61.00

The Baofeng DM-1701 DMR Walkie Talkie is an advanced dual-mode radio that seamlessly operates in both analog and digital modes, providing exceptional versatility for users. With its Tier 1+2 dual time-slot capability, this ham radio ensures efficient communication over long distances. Key features include a robust design, clear audio quality, and comprehensive programming options, making it suitable for amateur radio enthusiasts and emergency responders alike. Its long-range performance and dual functionality distinguish it as a reliable choice for both casual users and professionals, offering a perfect blend of innovation and durability.

Color	Add Cable Add Cable Add H-771 Add H-771 Add H-771-Cable Add H-771-Cable Add Headset Add Headset Standard Standard
Plug standard	american american EURO EURO Clear

Color

Add Cable

Add H-771

Add H-771-Cable

Add Headset

Standard

Plug standard

american

EURO

Clear

Output Power(w): 5w-10w
Battery Capacity(mAh): High Capacity
Waterproof / Water-Resistant: IP45
Material: Plastic
Storage Channel: 3000
Frequency Range: 136-147MHz/400-480MHz
Dimensions: 133*62*36mm
Model Number: DM-1701
Walkie Talkie Type: Portable
Is_Display: Yes
Maximum Range: 5km-10km
Brand Name: BAOFENG
Origin: Mainland China

✧[Digital & Analog Compatible]The DM-1701 is compatible with digital and analog modes, including dual band VHF/UHF coverage of 136-174 MHz and 400-520 MHz. It has up to 3,000 Channels, 10,000 Digital Talk Groups and 120,000 Contacts.

✧[Multi-Function & 1.77 “color TFT Display]– The DM-1701 offers to scan analog and digital channels, manual programming, DTMF, VFO, SMS, emergency alarm, digital monitor mode, CTCSS and CDCSS, color codes and DMR encryption. There are 5 customized keys for faster access to those features.

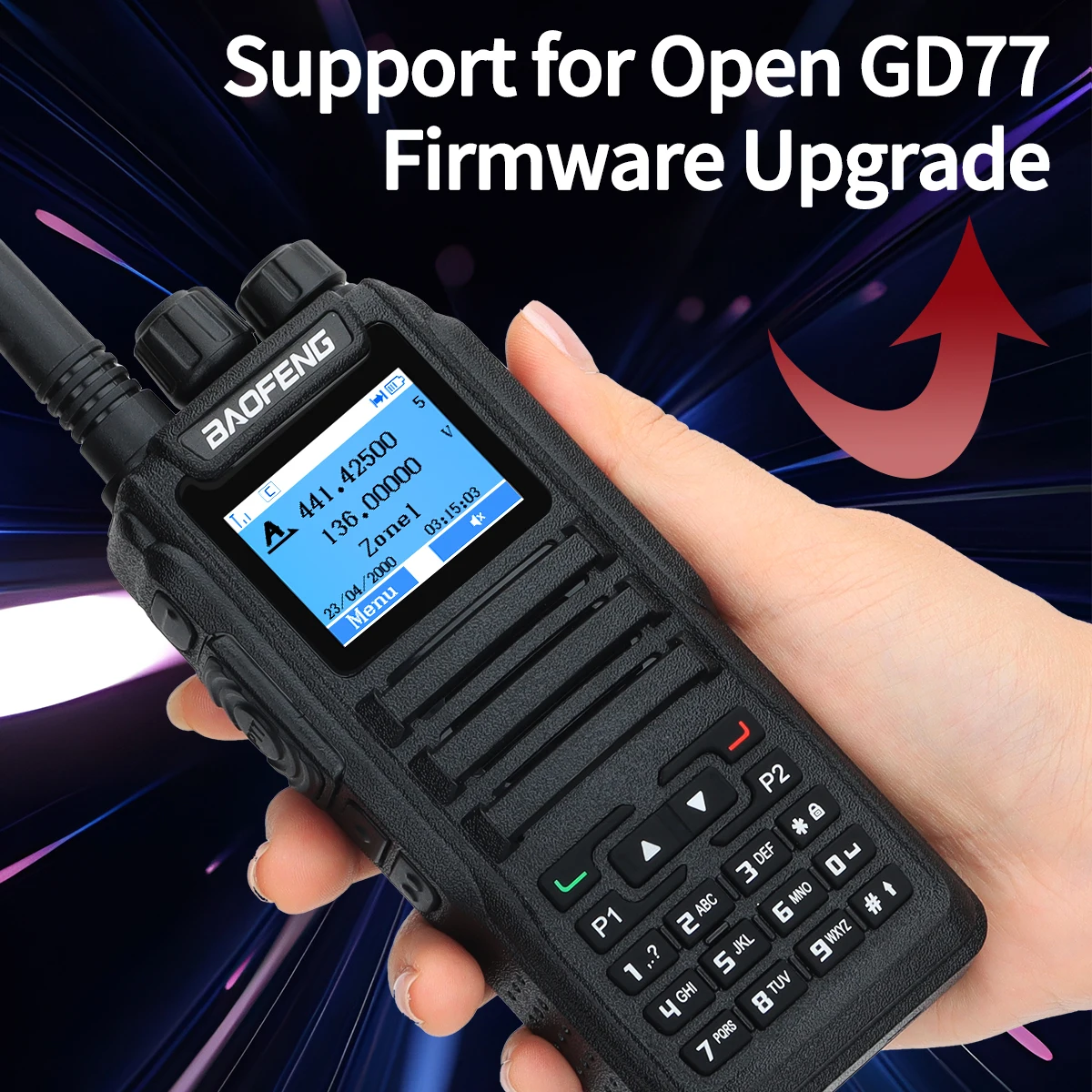

✧[Updated Software & Firmware Support]– The DM-1701 CPS supports mass editing, users can make complex application requirements, which makes it easier to write codeplugs. Firmware and software upgrading for new functions are life-time-free.

✧[DMO True 2 time slot]– Direct mode dual slot communication achieves two groups of calls at a frequency point at the same time so that the communication efficiency is doubled and frequency resources are saved. Compatible with MOTOTRBO Tier I & II and other DMR radios.

Specifications:

General
Frequency Range	Dual Band VHF 136-174MHz & UHF 400-470MHz
Storage channel	128groups
Maximum deviation	≤ Wont be 5 kHz/≤ wont be 2.5 kHz (W/n)
Operating Voltage	DC 7.4V
Frequency Stability	±2.5ppm
Operating Temperature	-20~+60℃
Channel Spacing	25KHz(Wide),12.5K(Narrow)
Antenna Impedance	50Ω
Battery Capacity	2200mAh
Dimensions	133 ×62 ×32mm(Antenna Not included)
Transmitting
Output Power	1W/5W
Modulation (wide band/ Narrow band)	Analog:16K Φ F3E/11K Φ F3E
Maximum frequency Deviation (wide band/ Narrow band)	≤ Wont be 5 kHz/≤ wont be 2.5 kHz (W/n)
Stray Power	≤7.5W
Adjacent channel power	≤-65dB/≤-60dB
QT/DQT Deviatio(wide/narrow)	0.7±0.1KHz/0.4±0.1KHz
Signal to noise radio	≥-45dB/≥-40dB
Modulation sensitivity	8-12mV
Transmitting Current	≤1.5A
Receiving
Receiver Sensitivity	≤ 0.25uV(12dB SINAD)
Stray Suppression	≥-65dB
Audio Power	1W
Audio Distortion	<10%
Intermoulation	≥-65dB/≥-60dB
Adjacent channel selectivity (Wideband/narrow band)	≥-65dB/≥-60dB
Receiving current	≤380mA

Package Include:

1 X Portable radio

1 X Antenna

1 X Li-ion battery pack

1 x Li-Ion Charger

1 X Belt clip

1 X The sling

1 X User’s manual

Discover the Baofeng DM-1701 DMR Walkie Talkie

Step into the world of seamless communication with the Baofeng DM-1701 DMR Walkie Talkie. This innovative device is not just a tool; it’s your gateway to reliable, long-range communication in both analog and digital modes. Designed for amateur radio enthusiasts and professionals alike, the DM-1701 packs a punch with its dual-mode functionality and robust features.

Key Features

Dual Mode Operation: Switch effortlessly between analog and digital modes, making it suitable for a variety of communication needs.
Tier 1 + 2 Compatibility: Designed to work with DMR Tier 1 and Tier 2 systems, ensuring that you stay connected wherever you go.
Dual Time Slot: Take advantage of dual time slots for efficient communication, allowing two conversations to occur simultaneously on the same frequency.
Long-Range Capability: Experience clarity over extended distances, making it perfect for outdoor adventures, emergency communications, and everyday use.
Programmable Features: Customize your settings easily using the software provided, allowing you to tailor the device to your specific operating style.
Built-in LED Flashlight: Navigate dark environments or signal for help with the handy built-in flashlight.

Why Choose the DM-1701?

The Baofeng DM-1701 offers a unique blend of cutting-edge technology and practicality. Here’s what makes it stand out:

Exceptional Audio Quality: Enjoy crystal-clear audio that enhances communication clarity, even in challenging conditions.
Durable Design: Built to withstand the rigors of outdoor use, it offers durability and reliability in various environments.
Long Battery Life: With an efficient power management system, stay connected longer without frequent charging interruptions.
Compact and Lightweight: Easy to carry on your adventures, the DM-1701 is designed for comfort and convenience.

Value Beyond Communication

But the Baofeng DM-1701 is more than just a communication device; it’s an essential companion for those who value connectivity. Whether you’re scaling mountains, organizing community events, or ensuring safety during group activities, this walkie talkie enhances your ability to communicate effectively and confidently.

Join the Baofeng User Community

By choosing the DM-1701, you also enter a vibrant community of users passionate about amateur radio. Share experiences, tips, and improvements with fellow enthusiasts who appreciate the art of communication.

Invest in the Baofeng DM-1701 DMR Walkie Talkie today and elevate your communication experience to new heights. Your adventure awaits—stay connected, stay safe!
